Retracta Hose Reel
$440
Verified seller

Description

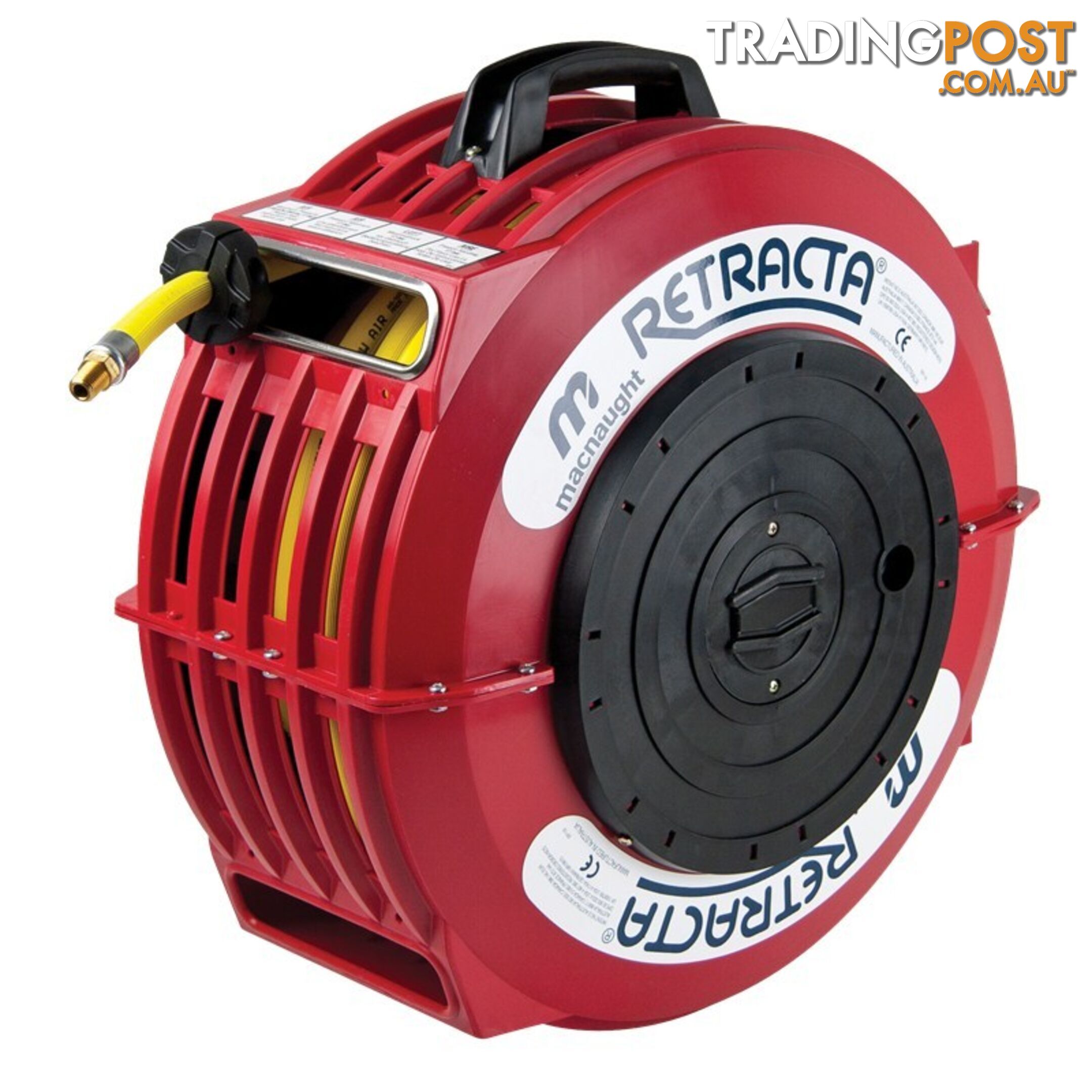

Retracta Hose Reel AR2101 New No AR320R-01

The High Quality RETRACTA AR2101 Compressed Air Reel is a premium quality, strong, reliable reel, constructed using UV stabilised polypropylene, heavy duty rewind spring, quality swivel assembly, 10mm x 20m hose assembly and is supplied complete with mounting bracket and carry handle. Fitted with a positive spring latch mechanism the hose can be latched every half metre. The reel is supplied complete with a steel mounting bracket which allows the reel to pivot 270 degrees and a locking plate to be fixed into a set position if required. The corrosion and weather resistant construction makes Retracta reels the ideal choice for both indoor and outdoor use. The spring rewind mechanism is factory lubricated and sealed for trouble free operation and can be easily re-tensioned externally without removing the reel casing.

Features & Benefits

10 Year limited warranty
Impact resistant - Maximum strength for a long service life
Vertical rib design - For increased strength
Precision machined swivels - Leak free and smooth operation
Screwed together - Easily repaired and maintained
Sealed and lubricated main spring - Virtually maintenance free service life
Spring latch mechanism - Allows the reel to be fitted in any orientation
Stainless steel mouth guard - Protects hose and reel casing against wear
Easy side plate removal - Easy to maintain reel without removal from installation
Lightweight & portable - Weighs only 10kg
Spare parts are available

Technical Specifications

Type: Air reel
Hose ID: 10mm
Length: 20m
Maximum working pressure: 250psi (1,700kPa)
Hose material: reinforced PVC
Reel color: Red
Hose color: Yellow
Reel Inlet: 3/8” BSP (F)
Hose outlet: 3/8”BSP (M)
Weight: 10kg
Dimensions: 250mm wide / 440mm high / 598mm long (including mounting bracket)
Maximum Temperature 60 deg C

Package Includes

RETRACTA AR320R-01 Air Hose reel
Carry Handle
Locking plate
BU100 mounting bracket and pin
Instruction manual



Retracta Hose Reel Instructional Manual




Part Number/SKU: AR320R-01

* Product Images are for illustration purposes only, unless otherwise specified colour may be different.
