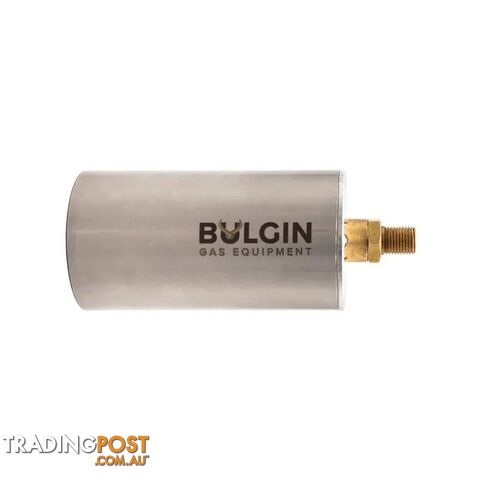

Air Propane Power Burner 62mm G1/4 Male Stainless Steel Base Bulgin 619-00040

AIR PROPANE POWER BURNER 62MM G1/4 MALE STAINLESS STEEL BASE BULGIN 619-00040

DESCRIPTION:

The Bulgin AirPropane Power Burner is a professional-grade heating burner designed to deliver powerful, stable and controllable heat across a wide range of trade and industrial applications. Available in four burner sizes, the range allows operators and system designers to select the appropriate heat output and LPG consumption for the intended application. Designed for use with propane / LPG air-mixed systems, the Power Burner produces a strong broad flame for rapid and even heat transfer. The range is particularly suited to preheating, heat shrinking, fabrication, roofing, manufacturing and general industrial heating, and can also be incorporated into multi-burner manifold arrangements for specialised heating processes. The Power Burner range features an interchangeable connection design compatible with other major brands and manufacturers, making it suitable for both new heating systems and replacement applications.

FEATURES:

Professional-grade airpropane heating burner
Available in 32mm, 38mm, 50mm and 62mm burner sizes
High, stable broad flame for rapid and even heating
Heat outputs from 37 MJ/h to 315 MJ/h
Suitable for single-burner and manifold applications
Designed for propane / LPG air-mixed heating systems
Interchangeable with compatible equipment from other major brands and manufacturers
Robust and serviceable construction
Multiple sizes to balance heat output and LPG consumption
Suitable for professional workshop, field and industrial applications

TYPICAL APPLICATIONS:

Steel preheating prior to welding
Heat shrinking
Fabrication and maintenance
Roofing and waterproofing
Bitumen membrane installation
Manufacturing and production processes
Drying and surface preparation
Multi-burner manifold systems
General industrial heating
Custom heating equipment

DESIGNED FOR PROFESSIONAL PERFORMANCE:

The Bulgin Power Burner range provides a scalable heating solution for applications ranging from controlled localised heating through to high-output industrial processes. Smaller burner heads provide greater control and lower LPG consumption for general heating tasks, while the larger models deliver substantially greater thermal output for applications requiring rapid heating of larger workpieces or surface areas. For specialised equipment and manufacturing processes, multiple Power Burners can also be incorporated into a manifold arrangement, allowing heat to be distributed across a larger or specifically defined area.

SPECIFICATIONS:

Specification 32mm 38mm 50mm 62mm
Burner Size 32 mm 38 mm 50 mm 62 mm
Heat Output 37 MJ/h 74 MJ/h 113 MJ/h 315 MJ/h
LPG Consumption* 0.8 kg/h 1.6 kg/h 2.3 kg/h 6.4 kg/h
Burner Length 57 mm 70 mm 86 mm 113 mm
Fuel Gas Propane / LPG Propane / LPG Propane / LPG Propane / LPG

*LPG consumption at 200 kPa operating pressure

BURNER SELECTION:

The 32mm Power Burner provides 37 MJ/h of heat output with low LPG consumption, making it suitable for smaller and more controlled heating applications.
The 38mm Power Burner increases output to 74 MJ/h and provides a versatile option for general trade, fabrication and maintenance work.
The 50mm Power Burner delivers 113 MJ/h and is well suited to medium-to-heavy heating applications requiring greater coverage and faster heat transfer.
The 62mm Power Burner delivers a substantial 315 MJ/h and is intended for high-demand industrial heating, larger workpieces and applications where rapid heat input is required.



Part Number/SKU: 619-00040

* Product Images are for illustration purposes only, unless otherwise specified colour may be different.
