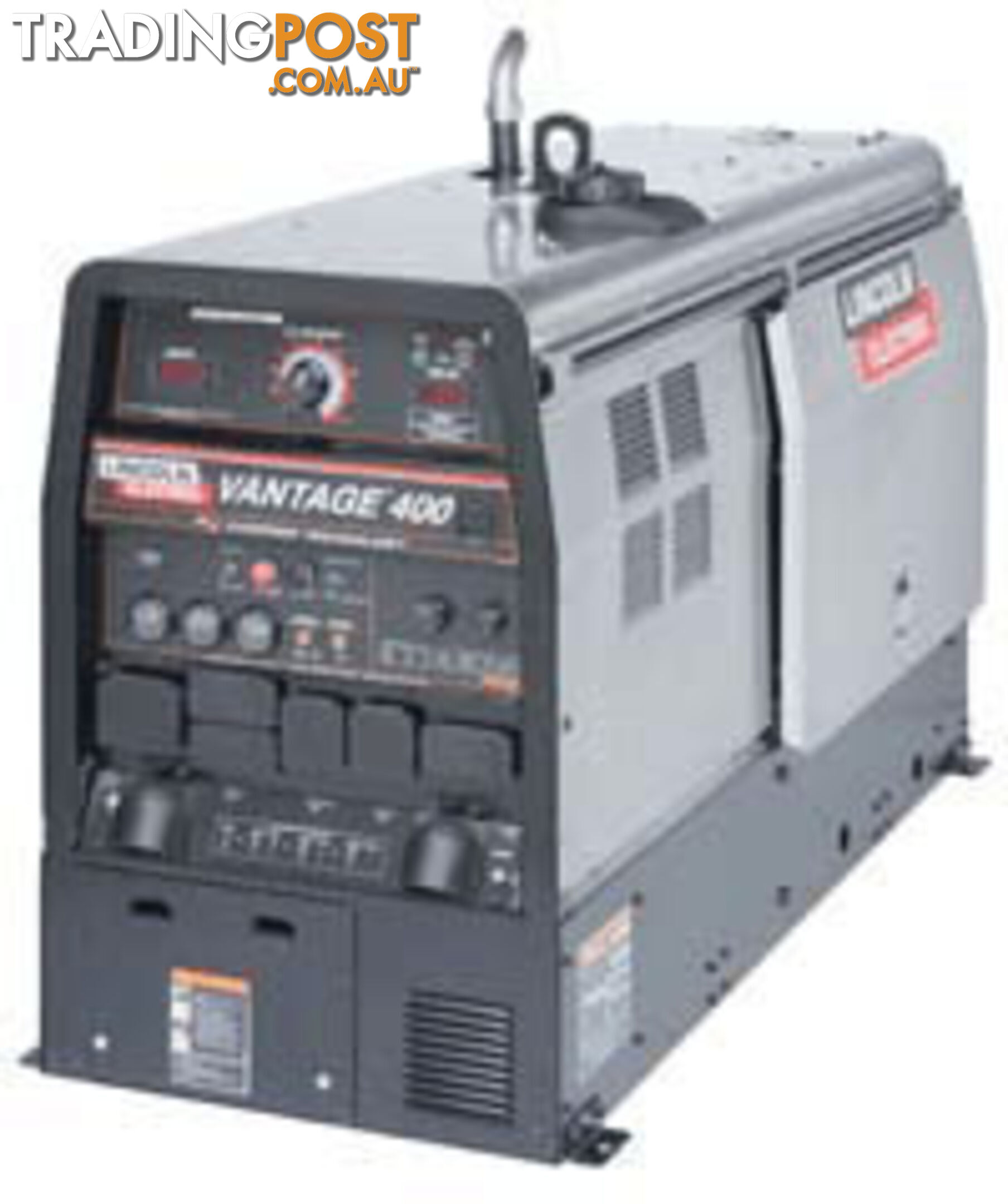

VANTAGE 400 Inc Roll Frame/Spill Tray K32038-1V-0001 (Machine Only)

VANTAGE® 400 ENGINE DRIVEN WELDER (PERKINS®) K32038-1V-0001 inc ROLL FRAME/SPILL TRAY

Top Features

Compact Case with Stainless Steel Enclosure
Multi-Process Welding, Separate Arc Gouge Mode
Plenty of AC Generator Power
Industrial Diesel Engine - 4 cylinder 1500 RPM Perkins®
Innovative Service Access

Processes

Stick, TIG, MIG, Flux-Cored, Gouging

Compact, Multi-Process, Excellent Value
 The quiet, compact Vantage® 400 is an ideal choice for construction teams, pipe rig owners and rental fleet managers Utilising a smooth running 4 cylinder Perkins® diesel engine.
 Compact Case with Stainless Steel Enclosure

One of the most compact 400 amp machines available. Suitable for many pickup and service trucks.
Standard stainless steel roof, side panels and engine-access door deliver added protection and durability.

Multi-Process Welding, Separate Arc Gouge Mode

Select one of five Process Modes, including CC-Stick (up to 6mm.), Downhill Pipe (for stick), DC Touch Start TIG®, CV-Wire (up to 2.4mm.) or Arc Gouging mode which maximizes output with up to 8mm carbon rods.

VRD Voltage Reduction Device

Reduced OCV in CC and CV weld modes for added safety.

Plenty of AC Generator Power

13.2 kW continuous 3-Phase 415/240V AC generator power. Will power industrial equipment such as a plasma cutter, pump or inverter welder.
1 x 415V 20A and 2 x 240V 15A receptacles for generator power for common construction tools.

Reliable Engine

4 cylinder 1500 RPM Perkins® diesel engines run smooth and quiet. Standard engine gauges allow you to monitor performance at a glance.
76 litre fuel tank for long run time.

Innovative Service Access

Lockable, removable sliding engine access door provides ample space for engine and oil filter work without requiring a large clearance space on your truck.
Battery drawer on front of machine and top-mounted radiator cover provide convenient access to these systems.
Patented tilt down control panel for easy servicing of internal components.
Patented radiator cap cover is latched for easy access and is lockable.

Low Noise

96 dBA Lwa sound power (71 dB at 7 m) – one of the quietest 400 amp engine-driven welders available.

 SPECIFICATIONS

 Rated Output

 400A/30V/60%

 350A/34V/100%


 Output Range

 14-36V

 20-250A DC TIG

 30-400A DC

 40-300A Pipe

 90-400A Gouge


Generator Output   3 Ph : 13.2 kW Cont., 1-PH 7.2kW Cont.
 Type of Engine   Perkins 404D-22 Diesel
 HP and Speed   28 HP@ 1500 RPM
 Cylinders   4
 Dimensions   1344 mm x 757mm x 2268
 Noise Level

 96 dB Sound Power (Lwa)

 71 dBA Sound Lvel at 7m


Price Machine Only




Part Number/SKU: K32038-1V-0001

* Product Images are for illustration purposes only, unless otherwise specified colour may be different.
