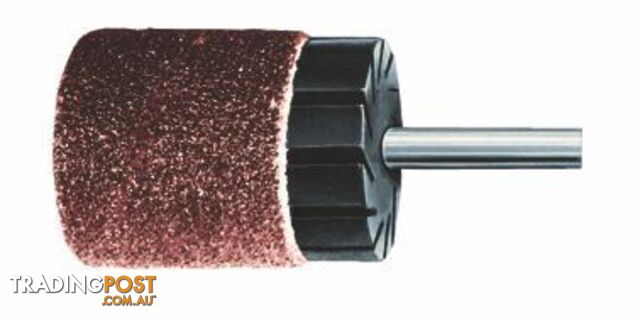

Drum Holder 6mm Shank GK 3030/6 Pferd 42109000

DRUM HOLDER 6MM SHANK GK 3030/6 PFERD 42109000

DESCRIPTION:

Compatible holder for cylindrical abrasive spiral bands. In ISO 15637-1, cylindrical rubber drum holders are designated as holding fixtures of cylindrical abrasive sleeves.

FEATURES:

The abrasive spiral band is firmly held in place on the rubber drum holder as the holder expands during use.
Excellent tool life due to special manufacturing process - even under the most demanding operating conditions.
Maximum economic efficiency thanks to a particularly high stock removal rate and aggressive abrasive quality.

RECOMMENDATIONS:

To easily change the abrasive spiral bands, give them a slight clockwise twist and pull them up and off. When doing so, leave the rubber drum holder clamped in the tool drive.
To ensure the abrasive spiral band is securely attached, adhere to the minimum speed for the rubber drum holder.
For the best results, use at a recommended cutting speed of 20-30m/s.

SAFETY NOTES:

The maximum permitted peripheral speed is 30m/s.

DRIVE TYPES:

Flexible shaft drive
Straight grinder

SPECIFICATIONS:

Acc. to ISO ISO 15637-1
Dia. external 30 mm
Dia. shank 6 mm
Hardness 6570
Length, shank 35 mm
Max. RPM 19100 RPM
PFERD TOOLS type GK
RPM, min. 13000 RPM
Version No information
Width 30 mm






Part Number/SKU: 42109000

* Product Images are for illustration purposes only, unless otherwise specified colour may be different.
