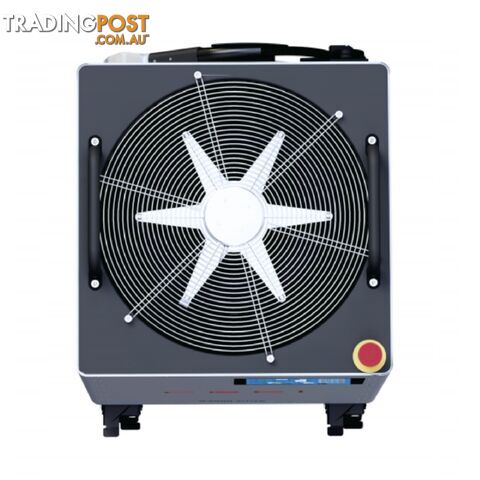

Air-Cooled Laser Welder A3000 Ultra Series Reci A3000ULTRA

AIR-COOLED LASER WELDER A3000 ULTRA SERIES RECI A3000ULTRA

DESCRIPTION:

Positioning-Ultra-high power air-cooled laser welder designed for heavy-duty industry, with single-pass penetration technology and extreme environmental adaptability as the core, high beam quality, and deep penetration.

CORE FUNCTIONS:

High power redundancy: In order to meet the needs of welding thicker materials, higher speed welding, etc., the power redundancy of the laser is greatly increased on the basis of maintaining the beam quality. Make the welding quality higher and the welding speed faster.
Super stability: Further optimize the air-cooled heat dissipation design of the pump source and the dust-proof design of the optical path, enhancing the adaptability of the welder to complex temperature and humidity, electromagnetic and dust environments.
Lightweight design: Taking A3000Ultra as an example, the overall weight is about 115kg, and the volume is about 0.27m. It is small in size and strong in performance, which further enriches the application scenarios of the product.

APPLICABLE SCENARIOS:

Precision manufacturing, automobile modification, aeroscope prototype development and fields with strict requirements on weld appearance.

FEATURES:

Fine Laser Beam Deep Penetration: Small core diameter, energy focusing technology (MCFD), high laser precision, greater penetration (1.5 times of other water-cooled lasers with the same power)
Ultra-Stable: Core components are as stable as a rock; long-term power fluctuation is  1%: power automatic repair, no attenuation for 10000 hours.
Self-Developed & Self-Produced: Integrated design, self-developed and self-produced lasers, motors, wire feeders, controllers.
Excellent Product Competitiveness: Exquisite weld, precisely adjust welding power, improve welding matching, and ensure optimal welding.

TECHNICAL SPECIFICATIONS:

OPTICAL CHARACTERISTICS:

Central Wavelength(nm) 1080+-3
Polarization State Random
Operating Mode Continuous and spot welding
Rated Average Power (W) 3000W
Wall-Plug Efficiency (WPE)  36%
Output Power Range 10~100%
Output Power Stability
Red Laser Power (mW)  0.4
Fibre Core Diameter (m) 30
Beam Quality (BPP)  1.5
Beam Homogenization /
Laser Output Method QCS+Welding Gun
Output Cable Length (m) 5

ELECTRICAL CHARACTERISTICS:

Input Power AC380V 50/60Hz
Power Consumption (W)
Control System Touch Screen

MECHANICAL CHARACTERISTICS:

Cooling system Air
Operating Temperature Range -30~40
Operating Humidity (%RH) RH10%~RH90%
Storage Temperature -30~60
Gas Input Pressure 0.7
Dimensions (WxDxH) mm 525.5 x 868.8 x 589.5
Weight (kg) 115
Welding Gun GWH-3000
Wire Feeder WF2X2
Compatible with Automated Equipment Control Interface 9PIN
Part Number/SKU: A3000ULTRA

* Product Images are for illustration purposes only, unless otherwise specified colour may be different.
