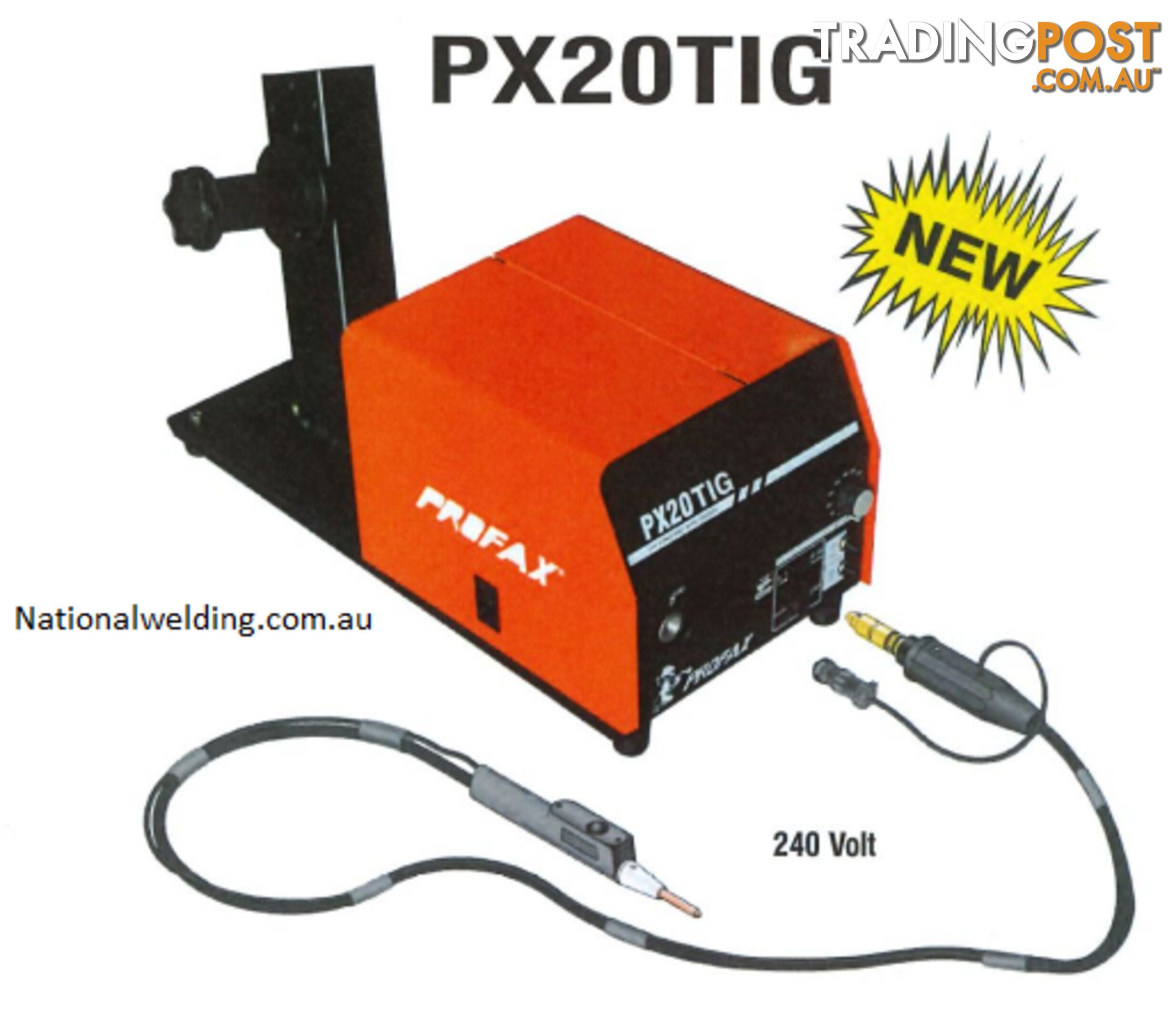

Cold Wire Feeder System for Tig Promax PX20TIG

COLD WIRE FEEDER SYSTEM FOR TIG PROMAX PX20TIG

Features:

Improves productivity by eliminating stops caused by cut length wire.
Eliminates end waste of cut length filler metal, an average savings of 10 to 20%.
Reduces cost of filler metal by utilizing spooled wire instead of cut length.
High frequency protection ensures reliability in all TIG applications.
Low initial cost - The PX20TlG is less than half the cost of most TIG cold wire feed systems on the market today
Low operating cost - Utilizes standard feed tips, standard liners, and standard momentary switch on feed pen.
The PX20TIG ships complete - Includes feed pen and 8 lead, drive rolls, power cord and plug for 110VAC input power.
Two (2) gear driven rolls with Tool-Less roll change. (Uses Miller@ style drive rolls).
Spool capacity - Standard 12" spools.

Specifications:

Part # PX-20TIG
Input Power 110VAC (50/60Hz)
Wire Diameters .023" (0.6mm) - 5/64" (2.0mm)
Wire Feed Speed 75 - 900 IPM (1.9 - 23 m/min)
Height 14" (356mm)
Width 11" (280mm)
Depth 25.5" (648mm)
Weight 36 lbs. (16.5kg)

Warranty

3 Year Warranty






Part Number/SKU: PX20TIG
