Panasonic YS080G3 Industrial Material Handling Robot System 2,239mm Horizontal Reach

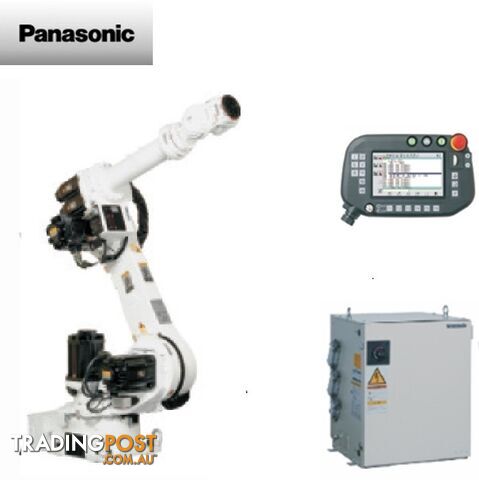

Panasonic Industrial Robot Systems comprise of:

Robot Manipulator with six axes and various reach options & payload capacities from 6kg to 220kg
Robot Controller incorporating the servo drives, control system PCBs, Safety system and Interface Controls
Teach Pendant to program & operate the industrial robot system
Cable sets between the robot controller, manipulator and teach pendant
Options including external axis positioners & controllers, extended cable lengths, multi robot synchronisation & process control software are available

Panasonic YS080G3 Industrial Robot System - Reach & Payload
The Panasonic YS080G3 Industrial Robot System has 2,239mm of horizontal reach and an extensive work envelope as shown in the elevation and plan view diagrams.

With an 80kg payload capacity this robot system is suited to a wide range of applications including;

Materials Handling
Packing & Palletising
Machine Tending
Assembly

Panasonic G3 Industrial Robot Controller

Controls maximum 27 axes with multi robot and external axis control.
3 robots synchronization capability
C-like advanced programming language
64 bit CPU achieving 30 second quick boot time
Standard 40000 points memory
Standard user I/O 40 each. Option I/O 504 each
Optimum kinematic calculation realizing faster acceleration and deceleration
Communication via Ethernet
Optional DeviceNet, Profibus and CC-Link interfaces

Panasonic G3 Robot Teach Pendant

7 inch TFT colour LCD
Graphical User Interface-display
Network protocols provides advanced production management and quality control for line productions
Eight function keys, enabling same action with less key strokes during teaching
Light weight design under 1 kg
2 x USB 2.0 ports
SD memory card slot (SD, SDHC)
Key Switch for Manual to Automatic Mode switching
Includes Start / Stop / Servo On and Emergency Stop switches for production control.


Panasonic YS080G3 Industrial Robot System Options

Single and Dual Axis Positioner Systems with payload capacity from 250 kg to 5000 kg
Servo Motor Systems from 100W to 5KW
External Axis Controllers interfaced with the robot controllers
Off Line Programming Software
Process Control Software






Part Number/SKU: YS080G3
