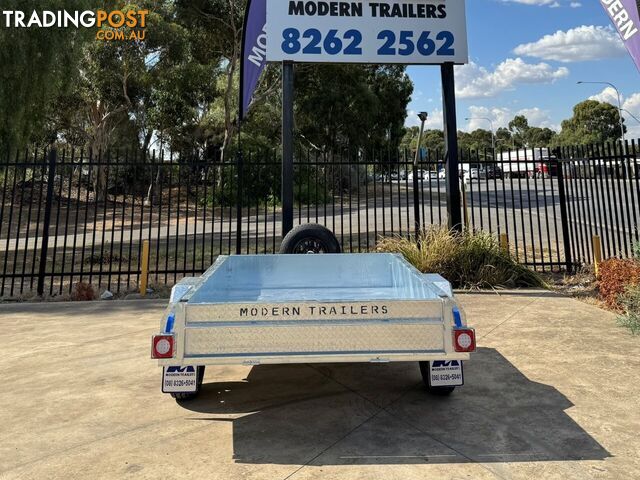

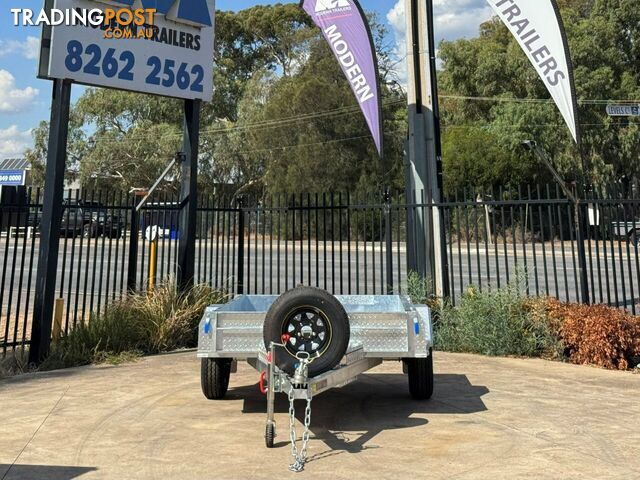

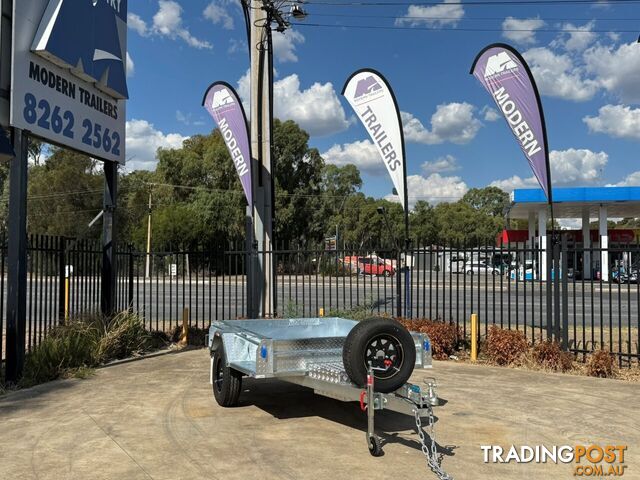

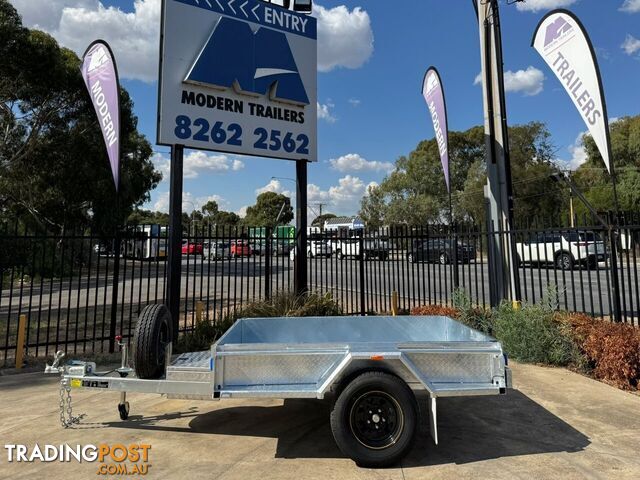

GALVANISED FULLY WELDED SINGLE AXLE 6X4 1800X1220 750KG

Features:
750kg ATM Load RatingTHESE TRAILERS ARE FULLY HOT DIPPED GALVANISED
- ROLLED BODY WITH 300MM HIGH SIDES
- HEAVY DUTY CHASSIS 50×50  RHS
- DRAW BAR 100X50X3 RHS
- TUBE HOLDER IN EACH CORNER FOR EXTRA STRENGTH & FITTING CAGES OR H-FRAMES
- FRONT & REAR OPENING CHECKER PLATE TAILGATE WITH TIE RAILS
- SWING HANDLES TO SECURE THE TAILGATES WITH  RUBBER SLEEVES
- DOUBLE FOLDED CHECKER PLATE GUARDS FOR A  MODERN LOOK
- PANS – CHECKER SIDE STEPS ON EACH CORNER OF GUARDS
- ADVANCED – INDEPENDENT TORSION SUSPENSION (ITS)
- SIDE TIE RAILS
- SPARE WHEEL HOLDER MOUNTED ON THE DRAW BAR
- SWING UP JOCKEY WHEEL
- 50MM LOCKABLE COUPLING
- LED 12/24V LIGHTS WITH 7-PIN FLAT PLUG (ALL JOINS SOLDERED)
- FRONT & SIDES REFLECTORS
- LARGE MUDFLAPS 300X230MM
- BRAND NEW 14” SUNRAYSIA RIMS WITH 185C NEW TYRES Key Features & Advantages:✅ 5-Year Structural Warranty
- Peace of mind with long-term durability backed by a solid warranty.📏 Larger, Stronger Drawbar
- Built with 100 x 50 x 3.5mm RHS steel — significantly larger and thicker than the industry standard 70 x 50 x 2.5mm.🛠️ Superior Drawbar Mounting
- Engineered for strength and reliability, our drawbar mounting system outperforms typical trailer construction methods.🚙 ITS – Independent Torsion Suspension
- A premium suspension system offering improved towing stability and ride comfort.🔧 Eliminates Common Spring Suspension Issues
- ITS suspension removes the need for outdated spring-and-axle setups, which often suffer from:
- – Spring bolts wearing out
- – Snapping springs or shackles
- – U-bolts loosening or breaking, leading to wheel and mudguard damage🛑 Advanced Mechanical Braking System
- ITS includes a built-in guide wheel mechanism that ensures both left and right brake callipers are pulled evenly for safer, more reliable braking.⚙️ Self-Adjusting Brake Cables
- Unlike spring setups, the ITS cable system doesn’t require constant adjustment when loads change — making it easier to maintain.🔩 Reinforced Cage Mounting
- 50x50mm tube inserts are used to securely mount the cage, offering superior strength compared to bolt-on cage systems.🧱 Heavy-Duty Cage Frame
- Built from robust 40x40mm steel with functional front and rear access doors. WHAT IS ITS SUSPENSION: INDEPENDENT TORSION SUSPENSION ITS axles have a straightforward, attached construction with a torsion suspension system. Four rubberized cords are inside the axle housing which handle suspension travel and shock absorption. In addition, this system offers trailer rigidity as the axle is bolted to the trailer frame.BENEFITS:The main advantages of a torsion bar suspension are soft ride due to elasticity of the bar, durability, and small profile along the width of the vehicle.ADVANTAGES:Smother ride & lower more ground clearance:
- Self-damping action and independent suspension, ITS delivers a smooth, quiet ride like no other – adding up to an improved towing experience. Also, by bolting the axle up close to the chassis this give more ground clearance than traditional spring & axle setup.Lower Maintenance:
- Except for periodic inspection of the fasteners used to attach the ITS axle to the Trailer frame, no other suspension maintenance is required on ITS axles. They are, of course, subject to normal maintenance and inspection procedures regarding brakes, hubs, bearings, seals, wheels and tyres.Traditional leaf springs, axles and all the componentry may fatigue over time and break whereas the ITS suspension has less componentry eliminating this issue.  Video Player
- 00:00
- 00:00
- WHAT IS GALVANISINGHot-dip galvanising is the process of dipping fabricated steel into a kettle or vat containing molten zinc. The process is inherently simple which provides a distinct advantage over other corrosion protection methods. While the steel is in the kettle, the iron in the steel metallurgical reacts with the molten zinc to form a tightly-bonded ally coating that provides superior corrosion protection to steel.The coating that develops during the galvanising process is metallurgical bonded to the steel and virtually becoming a part of the steel itself. During the reaction in the kettle, the zinc interacts with the iron in the steel to form a series of zinc-iron alloy layers. ADVANTAGES
- Galvanised coatings on steel can last in excess of 50 years, continually
- Protecting steel against corrosive elements.
- Galvanised coatings provide a sacrificial protection to the steel.
- Corrosion free
- Don’t need to worry about stone chips
- Never have to re paint the trailer
- Zinc has a self-healing mechanism in it. The zinc coating sacrifices itself slowly by galvanic action to protect the base steel.
- ENVIRONMENTAL ADVANTAGES
- Zinc exists naturally in the air, water, and soil in abundance. Furthermore, zinc is essential to all life from the smallest microorganisms to humans. Zinc and steel are both 100% recyclable without the loss of properties making galvanised steel an infinitely renewable material.
- Hot-dip galvanizing is a proven steel corrosion protection system that transcends time with minimal economic or environmental impact.
- Utilizing hot-dip galvanised steel ensures less natural resources are consumed, fewer emissions are output, and less money is spent over the life of a project. Pictures displayed are for illustrative purpose only & may show more or less features that are fitted standard

-Specifications:
 DIMENSIONS 6×4SIDE HEIGHT300FLOOR HEIGHT510OVERALL HEIGHT810INSIDE LENGTH1800INSIDE WIDTH1220DRAW BAR LENGTH1450OVERALL LENGTH3470OVERALL WIDTH1740COUPLING HEIGHT485

-
