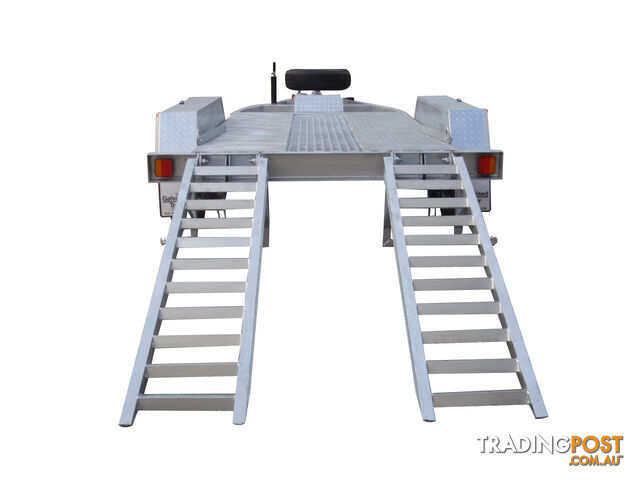

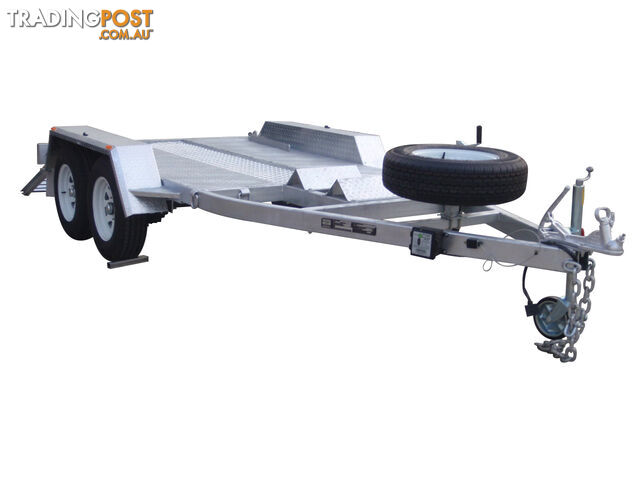

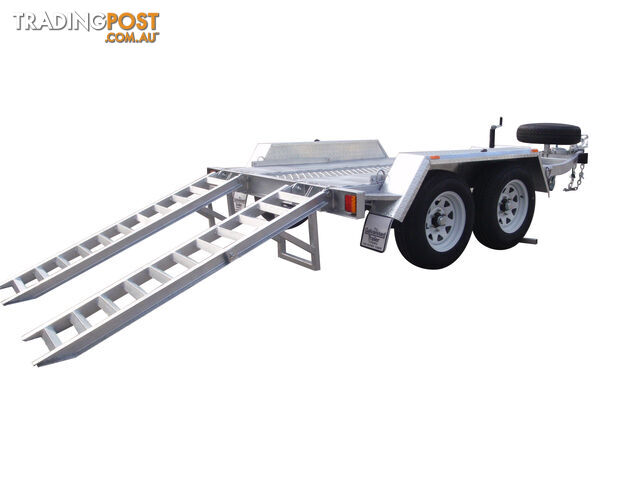

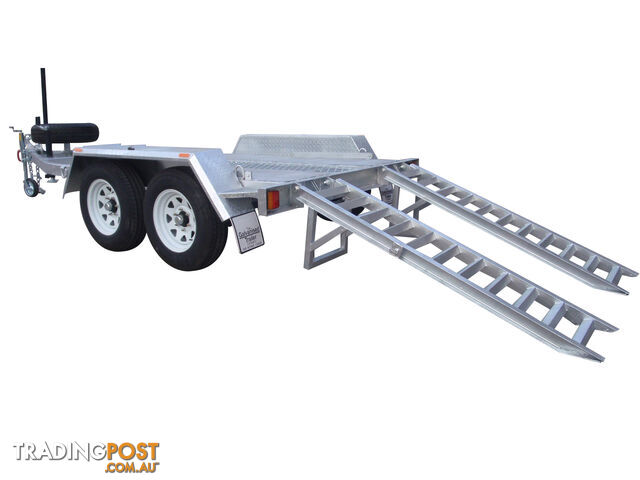

8×5.6″ Plant/Mini Excavator

We can freight our canopies all around Australia, so please contact us for a freight price to your location. Please see the below prices to freight depot’s at capital cities:
-
Features:
2.5mm Checker Plate Floor With Diamond Mesh Centre
3500kg Gross Vehicle Mass
Tare weight 850kg (2850kg Payload)
Single Piece 100/50/5mm Drawbar/Side Chassis Rail
2.5mm checker plate flooring, guards & side steps
Deck is 1672mmW x 2440mmL with extended drawbar for bucket mount
2.2 meter long extended drawbar
Heavy duty tie down rings positioned front and back (Six tie rings)
Rocker roller suspension with 7 leaf 8mm springs (4T Engineer Rating)
Reinforced spring hangers with middle gussets
50/50mm Solid square axels (Ford stud pattern)
NTN brand Japanese slim line bearings
50mm Quick release coupling
100/50/5mm External Chassis frame
Two 100x50x5mm middle chassis beams running length ways
70/50/3mm cross rails spaced 330mm apart
Double folded 45 degree mud guard tips
1.8M long gas strut assisted ramps made from 6mm C channel with stabilizing feet
10 Inch Electric drum brakes fitted to all four wheels
Hopkins break away unit
Handbrake
5 x Brand new 15 inch White Sunraysia style wheels (including spare)
5 x Brand new 195/15Clight truck tyres rated for 850kg per tyre
Fixed Jack Stand
8" AL-Ko swing up jockey wheel
LED Rear lights
LED side clearance lights
Compliance plate
Three year structural warranty
-
Freight Prices:
– Melbourne – Free Pickup – Sydney $480 – Canberra $650 – Adelaide $650 – Brisbane $990 – Tasmania $905
-
Prices may be subject to change, please contact us for confirmation on our latest products and prices.
