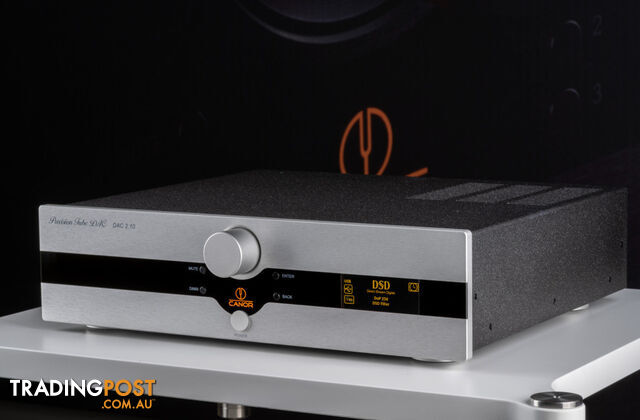

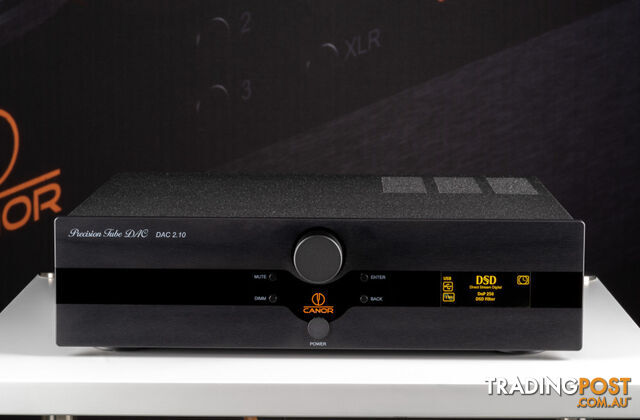

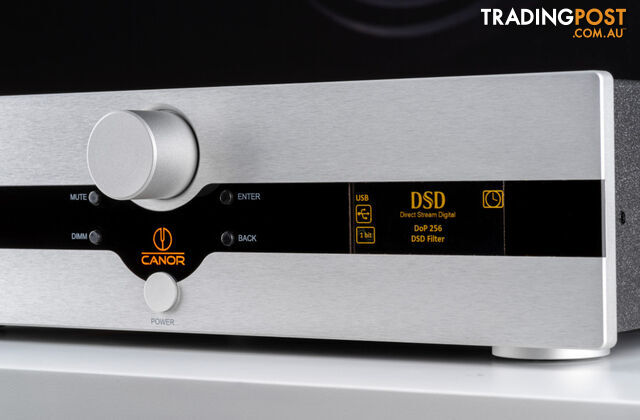

Canor DAC 2.10 Tube Based D/A Converter

Introducing the DAC 2.10

The Performance Line D/A converter with tube-based output from Canor
Canor DAC 2.10 uses the dual mono configuration of the ES9038Q2M digital-to-analogue converters from ESS Sabre, which ensure high sound quality.

Highlights
Dual mono configuration of digital to analogue converters from ESS Sabre
The consistently symmetrical signal path
The output part is analogue (tube-based)
Converter Filters

Seven digital converter filters for PCM format and one proprietary for MQA format - so the listeners can adjust the sound exactly to their liking.
Signal Processing

The signal from the digital inputs is processed by a powerful multi-core XMOS microcontroller with an advanced Multi-Core RISC architecture.
Power Transformer

To remove mechanical hum, the transformer core is vacuum impregnated, and the entire transformer is encapsulated in a special anti-vibration compound. In addition, the massive, welded cover in which the transformer is located creates effective electromagnetic shielding and contributes significantly to the excellent signal-to-hum distance.
Product Features
Thanks to used converters, it is possible to play files in PCM formats up to a sampling frequency of 768 kHz and for DSD format up to Native DSD512 via the USB input, thus covering most digital files that you can normally play, buy or stream.
DAC 2.10 uses the dual mono configuration of the ES9038Q2M digital-to-analogue converters from ESS Sabre, which ensure high sound quality.
Analogue output is a buffer, which is solved by a high-quality electronic connection
Dual converter wiring uses separate signal paths for the left and right channels.
There are seven digital converter filters for PCM format and one proprietary for MQA format, which is set automatically during MQA playback.
The last (eighth) item in the digital filter menu Oversampling Bypass can be selected. But its not a digital filter, as its turning off digital filtering for the ability to compare audio without filtering
Signal from the digital inputs is processed by a powerful multi-core XMOS microcontroller with an advanced Multi-Core RISC architecture.
Technical Specifications

Frequency Response at Fs=192 kHz
+/- 0.03 dB at 20 Hz to 20 kHz

Output Impedance
THD+N 1 kHz at 0 dBFs
THD+N 1 kHz at -6 dBFs
XLR Output Voltage at 0 dBFs
4 V RMS

XLR: SNR 20 Hz to 20 kHz at 0 dBFs
RCA Output Voltage at 0 dBFs
2 V RMS

RCA: SNR 20 Hz to 20 kHz at 0 dBFs

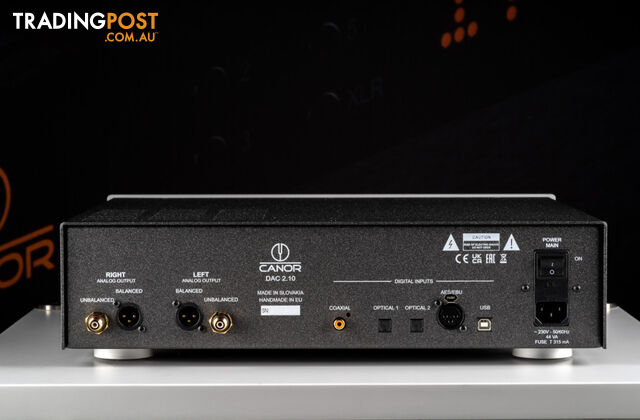

Analogue Outputs
2 x XLR
2 x RCA

Supported PCM Sampling Rates
44.1k / 48k / 88.2k / 96k / 176.4k / 192k / 352.8k / 384k / 705.6k / 768kHz

DSD over PCM Support
DoP DSD 64/128/256/512

DSD Native Support
Native DSD 64/128/256/512

MQA Support
Full MQA decoding by hardware from all digital inputs

S/PDIF Optical input
2 x (24bit / 192kHz)

S/PDIF Coaxial Input
1 x (24bit / 192kHz)

AES/EBU Input
1 x (24bit / 192kHz balanced)

Digital to Analogue Converter
2 x ESS9038Q2M (dual mono)

Filter Settings
8 x digital filter

Display
LCD TFT

Tube Complement
4 x 6922

Power
230 V / 50 Hz / 44 VA

Dimensions (w x h x d)
435 x 120 x 405 mm

Weight (net)
12 Kg
*This information has been obtained from Manufacturers website. We advise that Features, Specifications & Price are subject change from Manufacturer without notice.

E&OE
