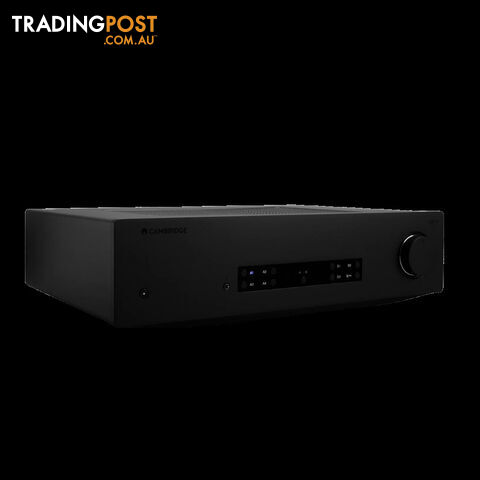

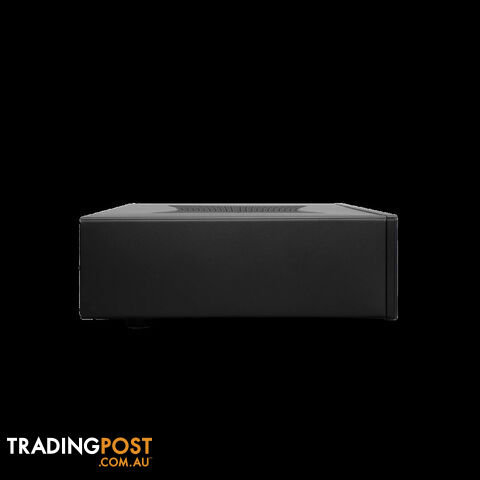

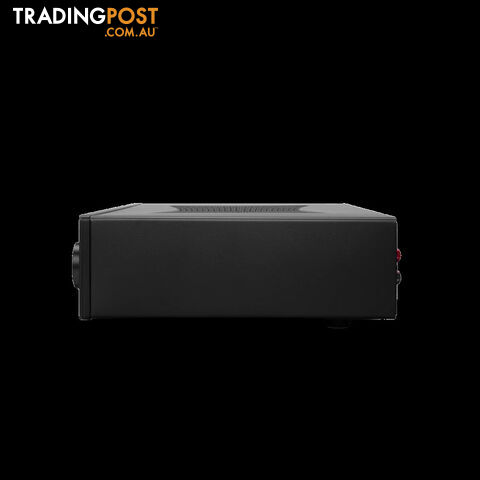

Cambridge Audio CXA81 Mk II Integrated Stereo Amplifier

Meet the Mk II CXA81

The new Integrated Stereo Amplifier from Cambridge Audio

CXA81 Mk II builds on the success of its multi award-winning predecessors. Cambridge Audio hasn't looked back since making their very first integrated amplifier in 1968.  They are always looking for new ways to improve your listening experience, all the while recognising that great sound never goes out of fashion.

So What’s New?

The inspiration for CXA81 Mk II came from the possibilities offered by the ESS ES9018K2M SABRE32 DAC and an injection of new talent into their London workshop, who asked the question “why not?”.
With a new DAC, new thinking, ten new op amps and a whole lot of listening, Cambridge Audio has delivered the focus CX Series was looking for; the CXA81 Mk II.
Your World’s a Stage

What hits you first when you hear familiar music through CXA81 Mk II, is just how detailed everything sounds. You’ll pick up instruments, subtle shifts in tone and harmonies you’ve previously missed. Close your eyes and you’ll be able to place every musician in the soundstage.

Once you’ve heard the amazing CXA81 Mk II, there’s no turning back.

Effortlessly Musical

At the centre of CXA81 Mk II lies a Class AB power amplifier stage with optimised capacitor values. It takes the musicality of Class A and blends it with the efficiency of Class B. The amp’s short signal path is efficient, leaving little opportunity for interference. The result is detailed sound that connects you to the raw power of your music.

Loud Quiet Loud

Thanks to a chunky toroidal transformer, CXA81 Mk II delivers a generous 80 watts of power per channel. Dual taps into the left and right of the amplification board mean that, in effect, each channel has its own power supply – resulting in a vivid soundstage.
Dynamic shifts in music – like loud then quiet passages – are handled with ease.

Get the Message

Designed to bring your digital music to life, CXA81 Mk features the upgraded ESS ES9018K2M DAC (digital analogue converter) in its dedicated circuitry. This means that digital audio files, up to a heady 24-bit/384kHz or DSD256, are unpacked – with every subtle detail delivered in full. CXA81 Mk II combines unparalleled accuracy with vivid musicality, doing so beautifully.

Get Connected

CXA81 Mk II has connectivity covered. As well as digital optical, coaxial and USB Audio (from computers), it features stereo RCA inputs, balanced XLR sockets plus wireless hi-res connectivity via Bluetooth aptX HD – perfect for the Alva turntables. You can even connect a second set of speakers, to hear your music in another room.

Total Control

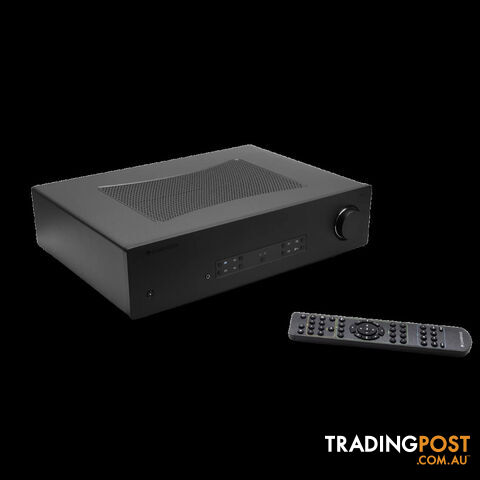

Designed to work with carefully matched kit of a comparable quality, CXA81 Mk II isn’t festooned with switches and dials – to keep the signal path clear. Its minimal aluminium fascia has a power button, input selectors and a beautifully smooth volume control. It’s supplied with a CX Series remote control, which you can use with other products in the series.

Designed for Life

With elegant, minimalistic lines, crafted from aluminium and steel, CXA81 Mk II will endure physically and aesthetically. There should be no reason to change an amplifier for many years, if at all. Making products that last is just one of the ways that we can minimise our impact on the planet and maximise your listening pleasure.

Product Features
80 watts per channel – power to drive the most demanding speakers
ESS ES9018K2M SABRE32 DAC – reference level digital/analogue conversion
Class AB Amplification – for balanced & efficient performance
Toroidal Transformer – for incredible sound-staging
Digital inputs – TOSLINK, Coaxial & USB Audio Input
Balanced XLR inputs – for premium connection (to CXN100 etc.)
Bluetooth aptX HD input – connect wirelessly to devices, incl. Alva TT V2
Roon Tested – connect a PC or Mac over USB
Technical Specifications

POWER OUTPUT
80W RMS into 8 Ohms, 120W RMS into 4 Ohms

DAC
ESS Sabre ES9018K2M

FREQUENCY RESPONSE


ANALOGUE AUDIO INPUTS
1x balanced XLR, 4 x RCA

DIGITAL AUDIO INPUTS
1 x S/PDIF coaxial, 2 x TOSLINK optical, 1 x USB audio, Bluetooth aptX HD

COMPATIBILITY
TOSLINK optical: 16/24bit 32-96kHz PCM
S/PDIF coaxial: 16/24bit 32- 192kHz PCM
USB: audio profile 1.0/2.0 (default 2.0), up to 24-bit 384kHz PCM, up to DSD256 or DoP256
Bluetooth: 4.2 A2DP/AVRCP supporting up to aptX HD (24bit 48kHz)
Roon Tested

BLUETOOTH APTX HD RECEIVER BUILT-IN
Yes

ROON TESTED
Yes

OUTPUTS
Speakers A+B, 3.5mm headphone, Preamp Output, Subwoofer Output

MAX POWER CONSUMPTION
750W

STANDBY POWER CONSUMPTION


FINISHES
Black
Luna Grey

DIMENSIONS (H X W X D
115 x 430 x 341mm (4.5 x 16.9 x 13.4”)
