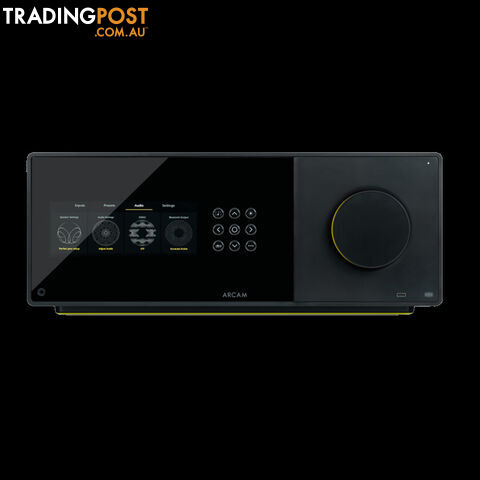

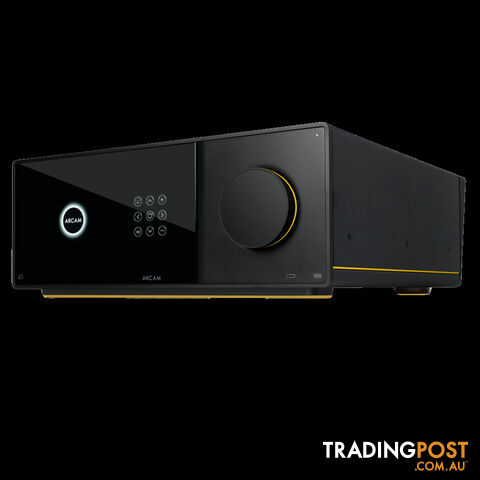

Arcam AVA25 AV Amplifer

Meet the New AVA25 AV Amplifier - it's coming soon, pre order now



Uncompromising Precision and Depth.

Step into a world where every note and every scene is delivered with uncompromising precision and emotional depth. The AVA25 isn’t just an amplifier—it’s the culmination of nearly 50 years of ARCAM’s mastery in sound design, created for those who demand nothing less than excellence.

Expertly engineered in Cambridge, UK, the AVA25 builds on our heritage with advanced Class AB amplification, developed in-house to deliver a richer, more musical performance. This is how we achieve sound that feels alive—rich, detailed, and effortlessly immersive.

With nine channels of powerful amplification, the AVA25 effortlessly drives immersive setups like 7.1.2 or 5.1.4, and offers expansion to 16 total channels with additional subwoofers, height, or surround speakers. Dolby Atmos, DTS:X, IMAX Enhanced and AURO-3D transport you with a cinematic experience, while Dirac Live room correction ensures flawless detail tailored to your space.

At ARCAM, sound quality isn’t just a promise—it’s their obsession. The AVA25 is the result of rigorous testing and listening sessions to award it the ARCAM name.

And with a vibrant 6.5" colour display, intuitive on-screen menus, and the new Radia App, setup and streaming are effortless.

Product Features
High power ARCAM Class AB Amplification.
Dolby Atmos - Bring even the smallest details to life with sound that moves in all directions.
DTS:X and IMAX Enhanced, place sound where it would occur naturally in space, creating the most lifelike, multi-dimensional audio experience ever.
AURO-3D A revolutionary way of delivering audio that wraps you in a cocoon of life-like sound.
Dirac Live Room Correction for exceptional, calibrated audio in any room - upgrade with Dirac Live Bass Control and Dirac Live Active Room Treatment
Back-lit, Bluetooth remote control for continuous out-of-sight control
Works with the new ARCAM Radia app for setup, control, Internet Radio, Podcasts and UPnP playback from iOS, Android and Windows devices and PCs
Supports Apple Airplay, Google Cast, Spotify Connect, Tidal Connect and Qobuz Connect
Works with Apple and Android devices, with direct connection from lossless music services
Bluetooth with Snapdragon Sound and Auracast for the best wireless sound with the most convenience
Large High-resolution display for clearly visible status and metadata from the comfort of your main listening position
Technical Specifications

DECODING / ENCODING

Maximum Channel Count
16

Reassignable Channels
Front, Surround Back, Height Channels

Supported Decoding and Encoding
Dolby Atmos, Dolby TrueHD, Dolby Atmos Height Virtualisation, Dolby Surround
DTS:X, DTS HD Master, DTS Neural:X, DTS Virtual:X
MPEG H
IMAX Enhanced
AURO-3D, AURO-2D

HDMI

Inputs/Outputs
7/3  (Zone 1 outputs = 2, Zone 2 outputs = 1)

HDMI/HDCP Versions
2.1a/2.3

Resolution support (resolution/framerate)
Up to 8K/60Hz or 4K/120Hz

Supported Dynamic Range Profiles
HDR, HDR10, HDR10+, HDR10+ Gaming, Dolby Vision, HLG

Supported HDMI features
Variable Refresh Rate (VRR), Auto Low Latency Mode (ALLM), CEC, eARC/ARC (Output 1) On Screen Display

STREAMING

Works with (apps)
ARCAM Radia Control, Spotify Connect, Tidal Connect, Qobuz Connect, Roon (Ready)

Works with (services)
Apple Airplay, Google Cast ARCAM Radia supported services, Internet Radio, Podcasts, UPnP

Supported Hi-res media
FLAC, WAV (LPCM), MQA, AAC, ALAC, AIFF, MP3, OGG, WMA
Gapless Playback Supported

Supported Hi-res Bit depth
16, 24

Supported samples rates (kHz)
Up to 192 kHz

Frequency response
20Hz—20kHz ± 0.05dB

DIGITAL INPUTS

Number of inputs (Coaxial/Toslink)
2/2

Supported Sample Rates (kHz)

Coaxial (RCA)
192, 176.4, 96, 88.2, 48, 44.1

Optical (Toslink)
96, 88.2, 48, 44.1

Bit depths (bit) (Coaxial/Toslink)
24, 16

Frequency response
20Hz—20kHz ± 0.2dB

Signal/noise ratio (A-wtd, ref. 50W, 0dBFS)
100dB

ANALOGUE INPUTS

Number of inputs
3 (RCA pairs)

Signal/noise ratio (A-wtd, ref. 50W, 1V input)
100dB

Frequency response
20Hz—20kHz ± 0.2dB

PREAMPLIFIER OUTPUTS

Number of Outputs RCA/XLR
16/0

Single-ended (RCA) peak output level per channel
2V RMS

THD+N (20 Hz to 20 kHz)
–100dB

AMPLIFICATION

Amplifier Channels
9, Class D

CONTINUOUS POWER OUTPUT (0.5% THD)

8O, 20Hz - 20kHz, 2 channels driven
120W

4O, 1kHz, 2 channels driven
650W

8O, 20Hz - 20kHz, 7 channels driven
90W

4O, 1kHz, 7 channels driven
100W

Harmonic distortion @80% power, 8O at 1kHz
0.005%

GENERAL

Mains voltage (V/Hz)
100–120V or 220–240V, 50–60Hz

Max Power consumption
900W

Max Thermal dissipation
3070 BTU/hour

Idle Power consumption
87W

Idle Thermal dissipation
300 BTU/hour

Standby Power consumption (Default/Low Power
2W/0.4W

Dimensions W x D (including speaker terminals) x H (including feet)
432 x 459.1 x 170 mm

Weight (net)
21.5kg

Weight (packed)
28.2kg

WIRELESS SPECIFICATIONS

Bluetooth Version
5.4

Bluetooth Profiles
A2DP Sink/Source, AVRCP, Snapdragon Sound, AAC, LE Audio, Auracast, GATT, VCP, MCP, BAP, CAP

Bluetooth Transmitter Frequency Range and Power
2,402 MHz to 2,480 MHz

Wi-Fi Network
IEEE 802.11 a/b/g/n/ac (2.4GHz/5GHz)

2.4G Wi-Fi Transmitter Frequency Range and Power
2.400 GHz to 2.4835 GHz

5G Wi-Fi Transmitter Frequency Range and Power
5.15-5.35GHz, 5.47-5.725GHz, 5.725-5.875GHz,

Supplied accessories

Region Specific Power Cord(s)
Rear panel cowl
Remote control with 2 x AAA batteries
Measurement Microphone
5m USB Cable
Quick Start Guide
Important Safety Instructions



*This information has been obtained from Manufacturers website. We advise that Features, Specifications & Price are subject change without notice.

E&OE
