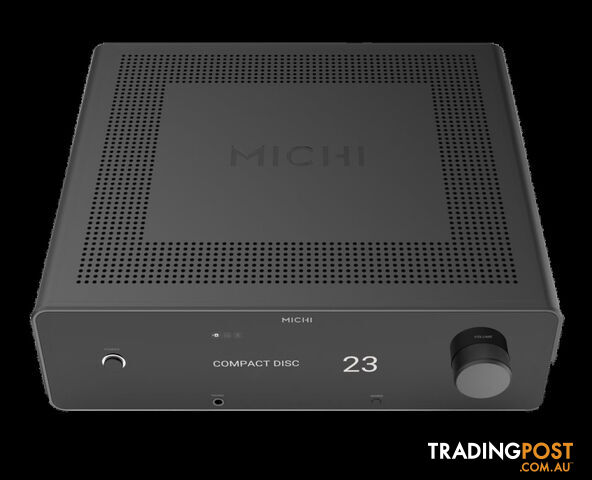

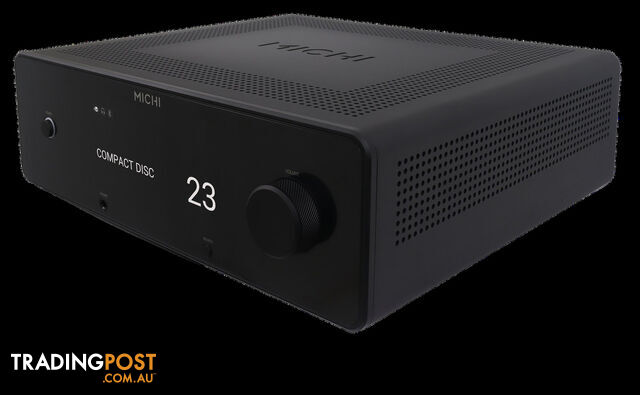

Michi Prestige X430 Stereo Integrated Amplifier

We'd like to present the Michi Prestige X430

Stereo Integrated Amplifier

The Michi Prestige X430 Integrated Amplifier represents uncompromising power, precision engineering, and refined craftsmanship. The X430 delivers a formidable 340 Watts per channel into 4 ohms loudspeakers (210 Watts into 8 ohms). The Class AB output stages utilise custom tuned push-pull high-current output transistors, revealing dynamics with impeccable control that can drive even the most demanding loudspeakers.

At the heart of the X430 is a premium ESS SABRE ES9039Q2M 32-bit DAC, ensuring exceptional transparency and musical accuracy. Digital connectivity includes 3 Coaxial, 3 Toslink Optical, PC-USB (PCM 32-bit/384kHz, DSD 256/4X with DoP) plus aptXTM HD / AAC wireless Bluetooth streaming.

The HDMI ARC input conveniently connects directly to your TV, delivering movies, sports, and games in high fidelity as a seamless 2.1 audio system featuring dual subwoofer outputs and two sets of A-B user-selectable speaker terminals. For vinyl enthusiasts, the X430 also features a Moving Magnet Phono input, as well as three RCA inputs, to ensure compatibility with all legacy audio sources.

A massive, in-house-manufactured toroidal transformer in a noise-rejecting enclosure drives proprietary power supplies delivering ultra-low noise, minimal distortion, and outstanding dynamics. Critical circuits are physically and electrically isolated throughout the audio path, further enhancing signal integrity.

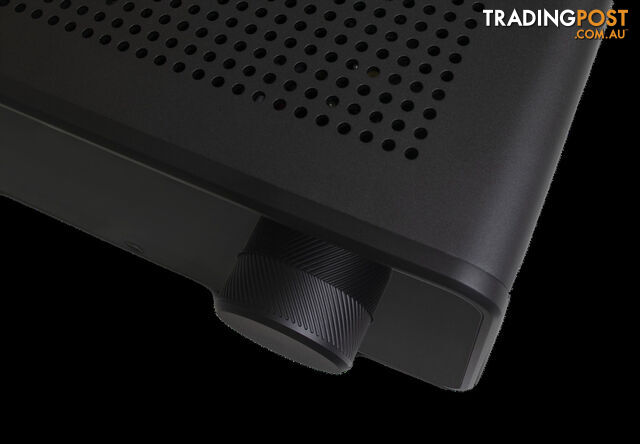

The Michi X430 pairs mechanical excellence with visual elegance. Its anodised aluminium faceplate, top cover, and knurled volume knob are precision-machined for durability and a premium feel. A solid glass front panel with a large, high-resolution colour display is user-customisable, featuring both spectrum and VU meter modes for an even more engaging listening experience with a modern finish.

The X430 embodies Michi's passion for musical integrity and uncompromising engineeringdesigned to unlock the full sonic potential from CD players, dedicated streamers, TV sources, and analogue components alike. One integrated solution that brings every source to life.

Product Features
ESS SABRE ES9039Q2M 32-bit DAC

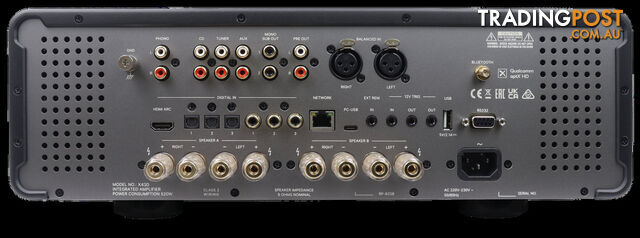

Coaxial (3), Optical (3) and Analog RCA (3) inputs
PC-USB with DSD 4X decoding
Bluetooth with aptXTM HD and AAC
Moving Magnet Phono Stage input
XLR Balanced input
Certified Roon Tested
Custom-engineered toroidal transformer
Dimmable front panel TFT high-resolution display
IP and RS232 2-way communication for control system integration
Michi remote control
About Michi

Michi is a flagship series of products built on the proud history and heritage of Rotel. Michi represents over 55 years of experience coupled with the passion of a family business and ever-growing family of satisfied product owners.

Acoustic Elevation. Sonic Evolution. Visual Perfection.

Michi, because their reputation is personal.

Key Specifications
Power Output (FTC)
220 W/Ch (8 ohms)
Maximum Power Output (Non FTC)
340 W/Ch (4 ohms)
Continuous Power Output  (Non FTC)
210 W/Ch (8 ohms)
Total Harmonic Distortion
Frequency Response

Line Level Inputs: 10 Hz - 100 kHz
(+0 dB, -0.5 dB)
Digital Inputs: 10 Hz - 20 kHz
(+0 dB, - 0.4 dB, Max)
Phono Input: 20 Hz - 20 kHz
(+0 dB, -0.5 dB)
Signal to Noise Ratio (A Weighted)

Line Level Inputs (RCA) : > 105 dB
Line Level Inputs (XLR) : > 100 dB
Digital Inputs: > 110 dB
Phono Input: > 80 dB
Intermodulation Distortion (60 Hz:7 kHz, 4:1)
Damping Factor (20 Hz - 20kHz, 8 ohms)
260
Channel Separation
> 55 dB
Preout Level
1.92 V
Output Impedance
100 ohms
Tone Controls
±10 dB at 100 Hz / 10 kHz
Input Sensitivity
Line Level Inputs (RCA): 356 mV
Line Level Inputs (XLR): 743 mV
Digital Inputs: 0 dBfs
Phono Input (MM): 5.56 mV
Input Impedance
Line Level Inputs (RCA): 100k ohms
Line Level Inputs (XLR): 50k ohms
Digital Inputs: 75 ohms
Phono Input (MM): 47k ohms
Input Overload
Line Level Inputs (RCA): 4 V
Line Level Inputs (XLR): 10 V
Phono Input (MM): 66 mV
Digital to Analog Converter
ESS ES9039Q2M DAC
HDMI
Support CEC with ARC function
2-channel PCM only (up to 24-bit/48 kHz)
Coax/Optical Digital Input Signals
SPDIF LPCM (Up to 24-bit/192 kHz)
PC-USB
USB Audio Class 2 (up to 32-bit/384 kHz)
*Driver installation required
Support DSD (up to 4X, 11.2 MHz)
and DoP (up to 2X, 5.6 MHz)
Support Roon Tested
Power Requirements
230 V, 50 Hz
Power Consumption
520 W
Standby Power Consumption
Normal
Network wakeup
BTU Rating
1476 BTU/h
Dimensions (W × H × D)
431 x 148 x 422 mm
*This information has been obtained from Manufacturers website. We advise that Features, Specifications & Price are subject change without notice.

E&OE
