Cayin CS-6LA Class A Pre-Amplifier

Cayin CS-6LA Valve Pre-Amplifier

The new Cayin CS-6LA preamplifier features dual pairs of stereo outputs, allowing for bi-amp configurations. To ensure reliable voltage supply rectification for the linear amplification, it utilises two NOS US RCA 22DE4 rectifier tubes in conjunction with four Russian 12AU7EH tubes. This combination contributes to a sound presentation characterised by tranquility and fluidity.

Cayin maintains its commitment to excellence by incorporating premium components into the CS-6LA. American multi cap coupling capacitors and Japanese TAKMAN carbon film resistors are carefully selected based on their tonal characteristics, enhancing the overall performance of the amplifier. The CS-6LA is equipped with a generously sized power transformer and chokes, promoting optimal dynamics and sound stability. The high-quality aluminium front plate of the CS-6LA exhibits excellent oxidation resistance and minimal surface photosensitivity.

Product Features

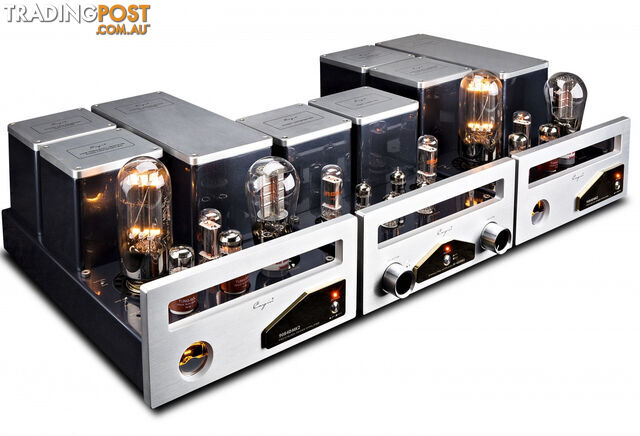

The new design SC-6LA deploys advanced vacuum tubes, coupling capacitor, carbon film resistor and a variety of high-class components. Effectively improved performance and audio quality. Collocated with 9084D MK2, creates the evolutionary home audio system concept.
Constructed linear amplifier circuit with FOUR Electro-Harmonix 12AU7EH Preamp Tubes.
Advanced rectifying circuit with TWO RCA 22DE4 Rectifiers.
Deploys Multi-cap Coupling Capacitors & Takman Carbon Film Resistors.
Designed for 15dB gain.
Customised EI-Core Power Transformers.
Technical Specifications

Frequency Range
2V (22V max)

Total Harmonic Distortion (THD)
0.02% @ 1V RMS

Signal-to-Noise Ratio (A-Weighting)
95 dB

Input Impedance
100 k

Output Impedance
3 k

Output Voltage
2V (22V max)

Gain
15 dB

Tube Assembly
4 x 12AU7EH
2 x 22ED4

Inputs
Line 1, 2, 3, 4

Outputs
2 x pre-out stereo

Circuit
Class A

Max. Input
62 W

Power Consumption
45 Watts

Dimensions (W x D x H)
286 x 328 x 193 mm

Weight
12.5 kg
*This information has been obtained from Manufacturers website. We advise that Features, Specifications & Price are subject change without notice.

E&OE
