Marantz Model 60n Integrated Amplifier

Meet the Model 60n Integrated Amplifier

Integrated Network Amplifier with Streaming Built-In

MODEL 60n is a network integrated amplifier engineered for exceptional hi-fi performance and comprehensive connectivity.

Stream in high-resolution via HEOS® Built-in, connect your CD player or turntable and complete your hi-fi system with the speakers of your choice, or an optional subwoofer.

Superb Marantz Sound
Sound Master tuned and engineered to bring you all the texture, nuance, and clarity of the Marantz signature sound.
High Resolution Streaming

Stream in high- resolution from today’s most popular music services, including TIDAL, with HEOS® Built-in.

Building your HiFi System

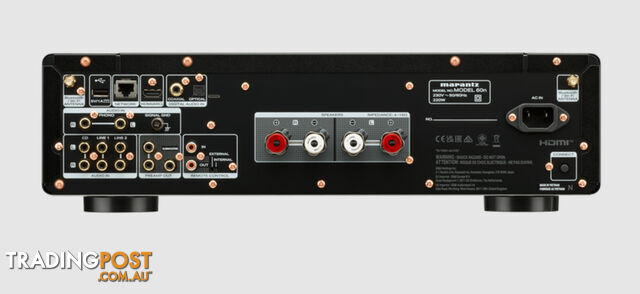

Wide range of connections, including for a CD player and turntable, enable you to build a comprehensive hi-fi system.

Enhanced TV Sound Quality

Enjoy superior TV sound for your favourite movies and shows and enhance your gaming experience with MODEL 60n’s HDMI ARC connection.

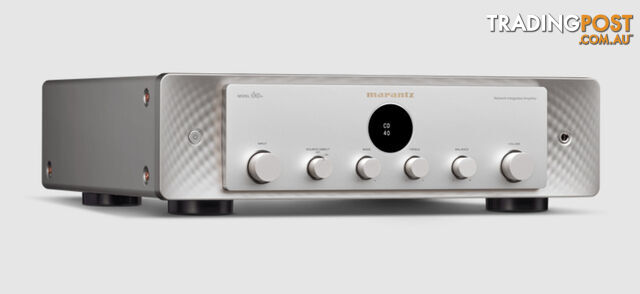

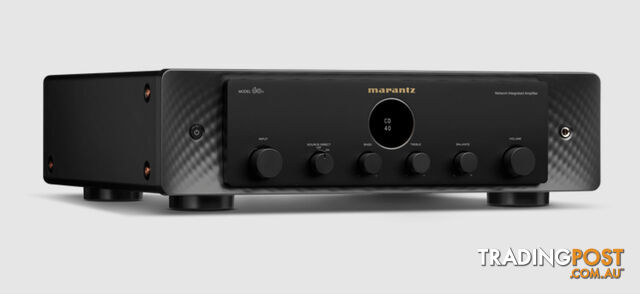

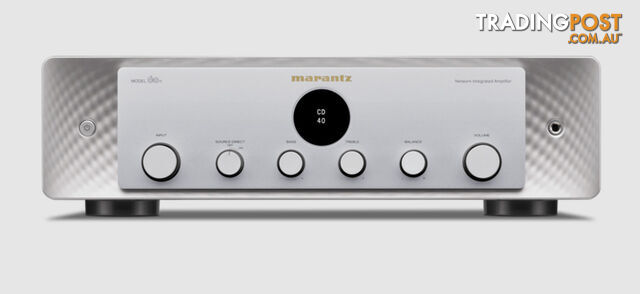

Marantz Industrial Design

Intuitive operation, designed with robust yet refined materials and available in two colours, black and silver-gold.

Product Features
60W per channel
HEOS® Built-in
HDMI ARC
Marantz HDAM® circuits
Hi-Res audio support
CD and MM phono inputs
Technical Specifications
Amplifier
Channels 2
PSU Transformer Toroidal
Speaker A / B No
Speaker Terminals Marantz SPK T-1+
Number of Terminals 2
Power Output (8 / 4 Ohm RMS) 60 W / 80 W
Topology Class A/B
Audio Components and Technologies
Current Feedback Topology
HDAM Version SA3, SA2
High Grade Audio Components
Customised Components
Symmetric PCB Layout
Aluminium Extrusion Heat Sink
Linear Drive Power Supply
Shottky Diodes
Control
D-Bus
DAC
Digital Inputs Coaxial, Optical, USB-A
Max PCM Sample Rate, 192 kHz / 24-bit
Max DSD Sample Rate, DSD 4X (11.2 MHz)
HDMI, 1 ARC
HEOS
Streaming Technologies, Bluetooth, Airplay 2, Roon Ready, Spotify Connect, Tidal Connect
Streaming Services (subject to change and local availability); Tidal (Hi Res), Deezer (Hi Res), Amazon Music HD, Pandora, TuneIn, iHeartRadio, SoundCloud, SiriusXM, AWA, Mood:Mix, Qplay, Sony HiRes
HEOS Multi-room and Streaming
Lossy Formats, MP3, WMA, AAC
Lossless Formats, DSD/DSF, FLAC, ALAC, WAV
Gapless Playback
HEOS App, iOS, Android
Network
Wi-Fi / Wired LAN
Other
Display, Low-Noise OLED Monochrome
Preamp
Phono EQ, MM Standard
Audio Adjustments
Preamp Outputs, 1
Subwoofer Output, 1 Mono
Headphone Out
Specifications
Frequency Response, 5 Hz-100 kHz
Total Harmonic Distortion, 0.02 %
Damping Factor, 100
Input Sensitivity: MM, 1.9 mV / 47 kOhm
Signal to Noise Ratio: MM/MC87 dB / -
Input Sensitivity: High Level190 mV / 20 kOhm
Signal to Noise Ratio: High Level113dB
Treble Control; ± 10 dB at 15kHz
Bass Control; ± 10 dB at 50Hz
Metal Front PanelYes
Power Consumption in W, 220
Standby Consumption in W, 0.3
Remote Control; RC006PM
Maximum Dimensions (W x D x H) mm, 442 x 431 x 129
Carton Weight kg, 15.5



*This information has been obtained from Manufacturers website. We advise that Features, Specifications & Price are subject change from Manufacturer without notice.

E&OE
