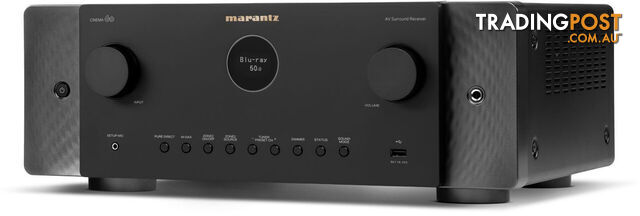

Marantz Cinema 60 7.2 Channel AV Receiver

Meet the Cinema 60 7.2 Channel AV Receiver

Premium 7.2 Channel - 100 Watts Per Channel AV Receiver

High-performance 7.2 channel AV receiver with 100 watts per channel amplification, Dolby Atmos, DTS:X, 8K Ultra HD, and HEOS built-in streaming. CINEMA 60 is the new standard of foundational luxury home theatre.

Excellence Only Begins with Performance

Built upon decades of rich heritage, designed with timeless style, and engineered for utmost performance, Marantz CINEMA Series are the foundation of the world's most demanding home theatres.

Key Features
Peerless performance

Immersive spaciousness, warm and rich tone, and lifelike dynamics are legendary hallmarks of Marantz sound.

Technology leader

CINEMA 60 comes packed with the latest immersive audio formats, 8K video, room optimisation, streaming, and more technology to simplify and elevate your enjoyment.

Exquisite design

A modern expression of timeless design principles, CINEMA 60 includes our iconic porthole, symmetry, and visual cues representing legendary Marantz quality.

Performance

The Marantz Sound Master meticulously tuned CINEMA 60 for amazing performance with our proprietary HDAM amplification circuitry to create the Most Musical Sound in your home.

Style

Excellence is heard and seen. CINEMA 60 features architectural design that can be featured or remain discreet in any luxurious environment.

Customisability

Thoughtfully selected connectivity options, flexible speaker arrangements, and fine-tuning ability allow you to make CINEMA 60 your own.

Effortless

Included remote, accessible front-panel controls, and an intuitive on-screen setup process make you feel like an expert user right away.

Technical Specifications

Power Amplifier

Number of Powered Channels
7

Power Output (8 Ohm, 20 Hz - 20 kHz, 0.08% THD, 2 Ch Driven)
100 W

Power Output (6 Ohm, 1 kHz, 0.7% THD, 2 Ch Driven)
140 W

Power Output (6 Ohm, 1 kHz, 10% THD, 1 Ch Driven)
200 W

70% Guarantee
Yes

Discrete Power Amplifier
Yes

Amplifier Topology
Class A/B

Current Feedback Topology
Yes

Bi-Amp Drive
Assignable

Multichannel Surround Technologies

DTS
DTS-HD Master, DTS:X, DTS Neural:X, DTS Virtual:X

Dolby
Dolby TrueHD, Dolby Atmos, Dolby Atmos Height Virtualisation, Dolby Atmos Music, Dolby Surround

Max Number of Processing (Preamp) Channels
7.1

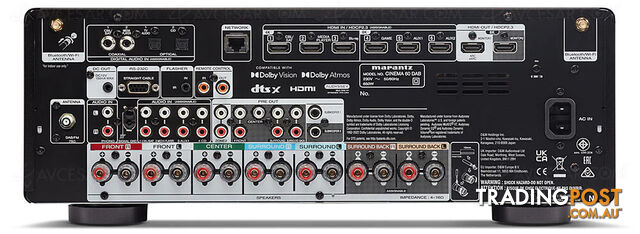

Inputs / Outputs

Composite In / Out
0 / 0

Component In / Out
0 / 0

HDMI In / Out
6 / 2

Multi-Room Video Out via HDMI
No

Analogue In / Fixed Level Out
4 in / 0 out

Phono (MM) In
Yes

Digital In: Optical / Coaxial
2 / 2

Multi-Room Out: Analogue / Digital
1 / 0

Multichannel Pre-Out
7.2

Subwoofer Out
2

7.1 Multichannel Input
No

Number of Speaker Terminals
7

Speaker A / B
Assignable

Multi-Room Speaker Terminal
Assignable

Front Inputs
USB-A

USB Audio / Made for iPod / Made for iPhone
Yes / No / No

FM Tuner with RDS
Yes

HDMI

Total HDMI Inputs / No. Support 8K
6 / 3

HDCP 2.3 support
Yes

HDMI Outputs: Main / Zone
2 / 0

Analogue to HDMI Video Conversion
No

HDMI Upscaling
1080P/4K to 8K

Max resolution @ frame rate
8K/60Hz, 4K/120Hz

Audio Return Channel
ARC, eARC

Video Dynamic Range
HDR, HLG, Dolby Vision, HDR10+, Dynamic HDR

ALLM (Auto Low Latency Mode) Pass-Through for Gaming
Yes

Variable Refresh Rate / Quick Frame Transport
Yes / Yes

HDMI Pass-Through in Standby Mode
Yes

CEC
Yes

DSD Audio over HDMI
No

Auto LipSync
Yes

Performance Technologies

Copper Plated Chassis
No

Toroidal Power Supply Transformer
No

Hyper Dynamic Amplifier Modules (HDAM)
Yes

Pure Direct Mode
Yes

Gold Plated RCA Terminals
No

Clock Jitter Reducer
No

Acoustic Room Correction

Audyssey
MultEQ XT

Audyssey Dynamic EQ / Dynamic Volume
Yes / Yes

Audyssey LFC
No

Dirac Live Support
No

Variable Cross Over
Yes

Optimised Bass Redirection
Yes

Bass Sync
No

Music File Support

Lossy Formats
MP3, WMA, AAC

Lossless Formats
FLAC HD 192/24, WAV 192/24, ALAC 192/24

DSD Audio
2.8 MHz / 5.6 MHz

Gapless Playback
FLAC, WAV, ALAC, DSD

Compressed Audio Enhancer: MDAX2
Yes

Network Audio Sharing
Yes

Streaming Services

HEOS Multi-Room and Streaming
Yes

AirPlay Audio Streaming
AirPlay 2

Internet Radio
TuneIn

Spotify
Spotify Connect

Pandora
No

SiriusXM
Yes

Other Streaming Services
Amazon Music HD, Amazon Music, TIDAL, Deezer, Napster, Soundcloud, Mood Mix

Roon Tested
Yes

Network Connectivity

Ethernet Ports
Yes

Wi-Fi
Yes

Bluetooth
Yes

Bluetooth Re-Transmit for Bluetooth Headphones
Yes

Smart Home Integration and Control

Voice Assistant Compatibility
Alexa, Google Voice Assistant, Apple HomePod

App for Smart Phones & Tablets (iOS & Android)
Marantz AVR Remote App, HEOS

HEOS Multi-Room Integrated
Yes

HEOS Link Compatibility: IR / IP
Yes / Yes

Multi-Room Zones
2

Zone Audio Source: HDMI / Opt, Coax / Network, USB / Analogue
Yes (2 Ch) / Yes (2 Ch) / Yes / Yes

Zone Audio Output: Speaker / Preout
Yes / Yes

Zone HDMI Output from HDMI Source
No

Control Connectivity
IP Control, RS232 Control, Web Control, App Control

IR Flasher In
Yes

Marantz Remote Bus
Yes

DC Trigger Output
1

HDMI Diagnostics
Yes

Others

Front Display
Port Hole OLED

GUI Languages
3

Setup Assistant
Yes

Smart Select on Remote
Yes

Firmware Update by Network / USB
Yes / Yes

ECO Mode
Yes

Auto Power off
Yes

Sleep / Timer
Yes

General

Metal Front Panel
No

System Remote Control
RC-049SR

Power Consumption
650 W

Power Consumption No-Sound (ECO On/Off)
45 W / 75 W

Standby Consumption
0.2 W

CEC Standby Consumption
0.5 W

Network Standby Consumption
Less Than 2.0 W

Dimensions W x D x H
Antenna Horizontal - 442 x 354 x 165 mm
Antenna Vertical - 442 x 354 x 235 mm
No Antenna - 442 x 343 x 165 mm

In The Box
Main Unit
Remote Control
Batteries
AM/FM Antennas
Wire Labels
Quick Start Guide
Audyssey Microphone
Cardboard Microphone Stand
2 External Detachable Antennas
AC Cord
*This information has been obtained from Manufacturers website. We advise that Features, Specifications & Price are subject change without notice.

E&OE
