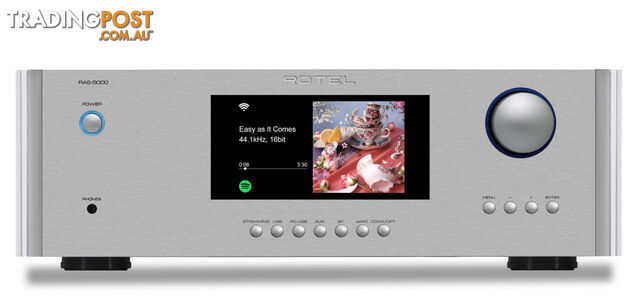

Rotel RAS-5000 Amplified Streamer

Introducing the RAS-5000 Amplified Streamer

Simplicity and Performance designed to fit your lifestyle

The RAS-5000 seamlessly integrates HDMI ARC (Audio Return Channel) for playback of video sound, and effortlessly streams from online sources to play your favourite music from Spotify Connect, Tidal Connect, Internet Radio, or any service available on your computer, tablet, or mobile device via Airplay 2, Google Cast, Roon, or aptX HD Wireless Bluetooth.

The RAS-5000 is the perfect fusion of advanced audio technology coupled with modern convenience.

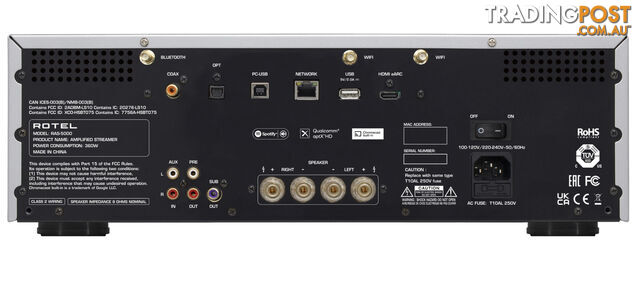

In addition to streaming and HDMI ARC you’ll also enjoy a wide array of traditional source inputs including Coaxial, Optical and RCA Analog inputs. The PC-USB input supports PCM and native MQA and MQA Studio decoding.

Digital music files up to 32-bit, 384kHz resolution are rendered with ultimate precision thanks to the premium ESS Digital to Analog converter, while the streamlined ARC connection between your TV and RAS-5000 ensures dynamic, high resolution sound from your favourite live sports, TV shows, movies, and games.

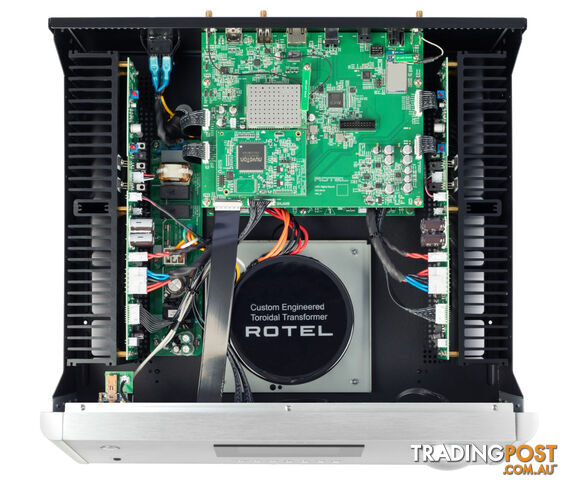

Like all Rotel amplifiers, the RAS-5000 is constructed around a massive linear power supply featuring a custom toroidal transformer, which allows the RAS-5000 to deliver a staggering 220 watts of Class AB power into 4 ohms. The over engineered power supply delivers ultra-low-noise power to all critical components and robust current to the amplifier output transistors to deliver deep, controlled bass energy with exceptional fidelity.

The sleek RAS-5000 is available in both stylish black and sophisticated silver colours to blend seamlessly to any décor, while its user-friendly interface ensures effortless operation.

Enhance and simplify your home entertainment experience without compromise today with the Rotel RAS-5000 and immerse yourself in sound.

Product Features
2 x 220 Watts of robust Class AB power, 4 Ohms
Class AB amplifier design
Wireless aptX™ HD and AAC Bluetooth
ESS premium 32-bit Digital to Analog Converter
Certified Roon Ready
Includes Remote Control
Technical Specifications
DESIGN
High Performance Streaming Amplifier with HDMI ARC


POWER OUTPUT
220 Watts / ch (4 Ohms)
140 Watts / ch (8 Ohms)

TOTAL HARMONIC DISTORTION (THD)

FREQUENCY RESPONSE
Line Level Inputs
10Hz – 100kHz, ±0.5dB

Digital Inputs
10 Hz – 70k Hz, (±3 dB, MAX)
S/N RATIO (IHF “A” Weighted)

Line Level Inputs
103dB

Digital Inputs
105dB

POWER REQUIREMENTS
120V, 60Hz

POWER CONSUMPTION
380W

STANDBY POWER CONSUMPTION
INTERMODULATION DISTORTION
(60 Hz : 7k Hz, 4:1)
DAMPING FACTOR
290

INPUT SENSITIVITY

Line Level Inputs
0.78V

Digital Inputs
-8dBfs

INPUT IMPEDANCE

Line Level Inputs
46k Ohms

Digital Inputs
75 Ohms

INPUT OVERLOAD

Line Level Inputs
4.1V

TONE CONTROLS
±10dB at 100Hz / 10kHz

HDMI
Support eARC function

COAX/OPTICAL DIGITAL INPUT SIGNALS
SPDIF LPCM (Up to 24-bit/192kHz)

PC-USB
USB Audio Class 2.0 (up to 24-bit/384kHz) - Driver installation required
MQA and MQA Studio (up to 24-bit/384kHz )
Roon Ready

DIMENSIONS (W × H × D)
431 x 144 x 425 mm

FRONT PANEL HEIGHT
132.6 mm

NET WEIGHT
15.7 kg

BTU RATING (4Ω, 1/8th power)
1027 BTU/h

WARRANTY
2 Years



*This information has been obtained from Manufacturers website. We advise that Features, Specifications & Price are subject change from Manufacturer without notice.

E&OE
