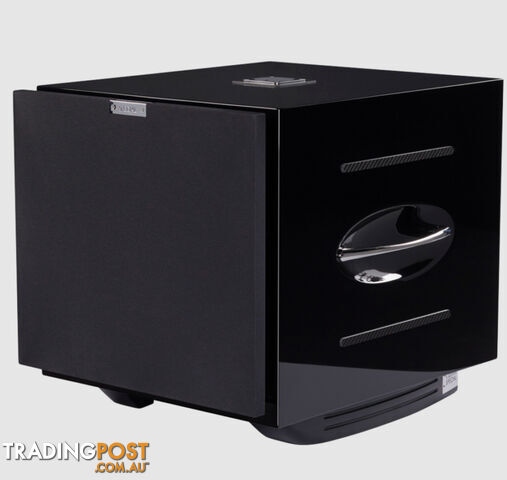

REL Carbon Special Subwoofer

Meet the Carbon Special

A Stunning Subwoofer from REL Acoustics



Carbon Special is a new limited availability model that combines REL's latest engineering with cutting edge components from their reference line, all housed in a moderately sized chassis.

Featuring third-generation carbon fibre 12” driver with a new, bespoke CSP passive driver that delivers 50% longer stroke, powered by a 1,000 watt amplifier and guided by their CS PerfectFilter™. An all new cabinet with highly polished metal and carbon fibre touches appears only in this model.

Where previous special editions have used existing cabinets, drivers and filters, Carbon Special uses many elements developed solely for Carbon Special. Employing their newest BlackWidow 12”(350mm) carbon fibre driver, developed to deliver superior dynamic balance throughout the full range of its considerable 4”(100mm) of fore-and-aft stroke. It is better able to handle, smoothly and effortlessly, the massive power needed to deliver explosive dynamics.

Paired with REL's NextGen5 1,000 watt amplifier which has proven to be both a sonic wonder and utterly reliable. Directing all this is a CS PerfectFilter, a custom-designed variant of their latest evolution of filters, improves both ends of the spectrum. It delivers airy, delicate highs with greater reach into the nether regions within a soundstage, as well as truer, more powerful ultra-low bass delivery. If it sounds too good to be true, it almost is.

Additionally, the cabinet extends deeper than previous mid-chassis designs to optimise performance for this new driver complement. The look is delivered in a refined, mature manner with subtle use of carbon fibre details sprinkled among chrome and polished stainless accents.

REL's PerfectFilters don't just meet but exceed expectations when it comes to low bass performance in a mid-chassis design. Additionally, improvements to its upper range output bring a more open and clear soundstage that undeniably enhances the entire system's performance. It's hard to overestimate the impact this can have on a high-quality audio setup's music output.

go on to expand its merits in power theatre. A true two-for-one upgrade.

The key to Carbon Special’s amazing performance is its new BlackWidow 12”(350mm) forward firing active driver. Carbon fibre grabs the headlines with its ultra-lightweight and tough, resilient nature. Carbon fibre, while light, has excellent self-quieting properties that allow for far greater dynamics because the driver itself is so quiet. This generation 3 version features a much larger surround to better allow the explosiveness needed to set itself apart from the pack.

The inner suspension was re-tuned to take advantage of this and the result, found only here and upcoming versions of the G-1 MK II is a 12” that hits like a heavyweight but reacts like a much smaller driver.

Power matters, and especially when our CS PerfectFilter demands more from the driver, additional power is crucial. This is why REL placed the heart of our flagship No.25 amplifier into Carbon Special. At 1,000 watts, it has the current reserves to easily keep up with the demands placed upon it by even the most rigorous user. Carbon Special is capable of startling the listener, used in dual duty for both theatre and music its merits are immediately obvious in music which can lull the theatre aficionado into complacency, only to be yanked out of any sense of normalcy when a huge, unexpected transient explodes without warning. Think Pierce Brosnan’s 007 using plastique at work here.

REL’s signature gift to the art of sub bass performance is undoubtedly the Reference Line Arrays, wherein three units per side are stacked vertically. This arrangement was practically invented for subs with the deportment of Carbon Special. For those who always dreamed of owning a REL Reference Line Array but were denied it because of their size, your ship has arrived!

Carbon Special works brilliantly with AirShip™, REL's state of the art wireless that transports sound invisibly with none of the compromises of conventional wireless. Available optionally, and at reasonable expense with Carbon Special.

While most wireless compresses horribly, Airship uses military grade 5.8Ghz wireless with zero compression to send signals so pure and fast they sonically outperform hardwired using anything but the best cables. Not having to see a snarl of cables tangling up in one’s grand salon is itself a reward for you having worked so hard.

TECHNICAL SPECIFICATIONS

TYPE
Front-firing active driver, down-firing passive

ACTIVE DRIVER SIZE & MATERIAL
12 in., 300mm long-throw, carbon fibre cone with inverted carbon fibre centre cap

PASSIVE RADIATOR SIZE & MATERIAL
12 in., 300mm Carbon, carbon flat cone structure, steel chassis

LOW FREQUENCY EXTENSION
-6 dB at 19Hz (in Room)

INPUT CONNECTORS
High Level Neutrik Speakon, Low Level stereo RCA, LFE RCA, and LFE XLR

OUTPUT CONNECTORS
High Level Neutrik Speakon, LFE RCA, and LFE XLR

POWER OUTPUT
1000 watts (RMS)

AMPLIFIER TYPE
NextGen5 Class D

WIRELESS CAPABILITY
Airship Wireless Required (sold separately)

Protection System

FULLY ELECTRONIC SET SAFE
Yes

D.C. FAULT
Yes

OUTPUT SHORT
Yes

MAINS INPUT VOLTAGE
220-240 volts, 110-120 volts for certain markets

FUSES
5 Amp 220 volts operation, 9 Amp 120 volts operation

Dimensions (W x H x D)
17 x 18 x 21.25 in. (430 x 455 x 539 mm)

NET WEIGHT
85.3 lbs. (38.7 kg)

FINISH
Piano Black Lacquer, 8 coats

Included Accessories
Mains Lead
Neutrik Speakon (10 Meters Nominal
Interconnect
Users Manual
