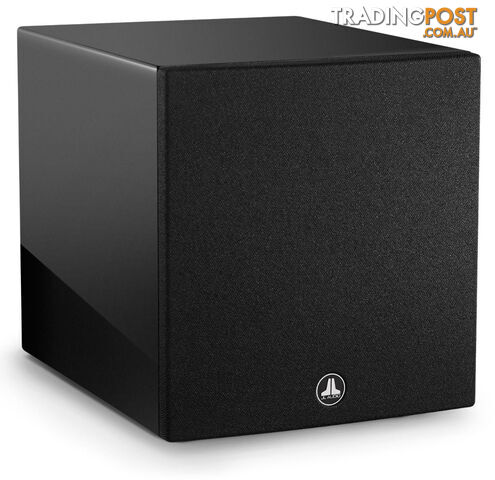

JL Audio Dominion d110 10-inch Subwoofer

W'd like you to meet the Dominion d110

Powered Subwoofer with 10-inch Subwoofer, 750 watts

Born from JL Audio’s vast collection of advanced technologies, Dominion® powered subwoofers combine a state-of-the-art Subwoofer and an advanced Class D amplifier to deliver unmatched performance and value for a wide variety of compact applications.

Purpose-built to reproduce powerful low-frequency events with stunning impact and precision, the Dominion® driver employs JL Audio’s exclusive DMA (Dynamic Motor Analysis) technology to produce higher output levels with reduced distortion, as well as improved dynamic tracking and resolution. As a result, Dominion® subwoofers are capable of peak-to-peak excursions well in excess of 2.5-inches (63 mm - d108), and 2.7 inches (68 mm – d110), without distress or audible distortion.

Dominion® amplifiers utilise an advanced Class D design in order to extract the most from the long-excursion driver platform. This design features a tightly regulated switching power supply, allowing the amplifier to generate prodigious amounts of unclipped output voltages. These technologies ensure that the Dominion® powered subwoofers remain in their comfort zone, which is well beyond the point where most small subwoofers run out of power or driver capability.

With a host of signal processing features included, Dominion® powered subwoofers can be integrated into most systems with ease.

Low-pass signals are precisely guided, thanks to the onboard crossover’s 24 dB/octave Linkwitz-Riley alignment. Phase and polarity controls are onboard to aid in achieving the optimal acoustic transition between the subwoofer(s) and main speakers. Flexible input options are on-hand to accept either line-level or speaker-level signals. Connect a JLINK™ TRX system (sold separately) to the onboard Wireless Link port and enjoy the freedom to position your Dominion® almost anywhere, up to 100 feet (30 metres) away from your source unit.

To contain the immense pressures created by the Dominion® driver, each beautiful cabinet is carefully engineered and constructed using solid, CNC-cut, MDF material with extensive internal bracing and advanced assembly techniques. All Dominion® powered subwoofers are built with pride and precision in JL Audio’s U.S. factory to deliver years of listening enjoyment.

About Dominion®

Dominion® powered subwoofers benefit from JL Audio’s expertise in driver and amplifier design to arrive at a unique solution for applications requiring a compact, more affordable subwoofer. Unlike any other product in its price class, Dominion® powered subwoofers combine a purpose engineered, DMA optimised, long excursion driver with an advanced Class D amplifier equipped with a tightly regulated switching power supply. Dominion® powered subwoofers can be used in a variety of compact applications, including full home theatre systems, media room systems, dedicated two-channel music systems, desktop audio workstations and small recording studios.

Built like no other

JL Audio's Miramar factory builds all of our home subwoofers, including their affordable Dominion® models. Dominions' unique drivers are built using the same advanced equipment and processes reserved for their top models and they share a production line with the E-Sub™ lineup.

Technology

JL Audio’s engineering department is at the forefront of research into fundamental loudspeaker behaviour.

They have developed proprietary electromagnetic and suspension analysis systems and invested heavily in state-of-the-art manufacturing and testing. This has borne subwoofer drivers widely considered as reference standards for linear displacement and dynamic stability.

It has also resulted in numerous U.S. and International Patents issued for technologies that refine and extend the performance envelope of the dynamic driver.

Technical Specifications

Enclosure Type
Sealed

Enclosure Finish
Black Gloss
Black Ash

Frequency Response (Anechoic)
27 - 111 Hz (±1.5dB)
-3 dB at 25 Hz / 118 Hz
-10 dB at 21 Hz / 143 Hz

Effective Piston Area (Sd)
48.71 sq in / 0.0314 sq m

Effective Displacement
127 cu in / 2.08 L

Amplifier Power
750 W RMS short-term

Power Modes
Automatic (Signal-Sensing)

Light Modes
N/A

Width
12 in / 305 mm

Height including feet
13.4 in / 340 mm

Depth
15.86 in / 403 mm
