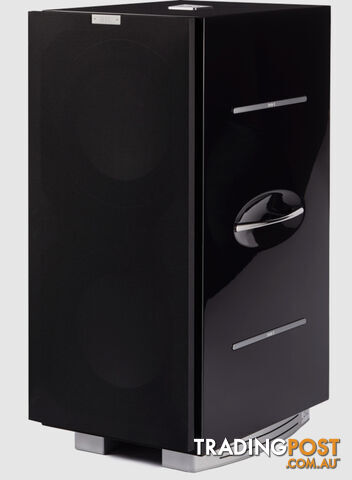

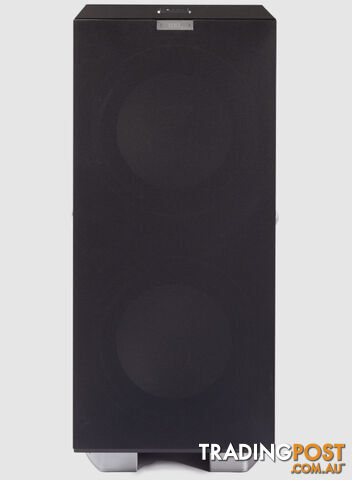

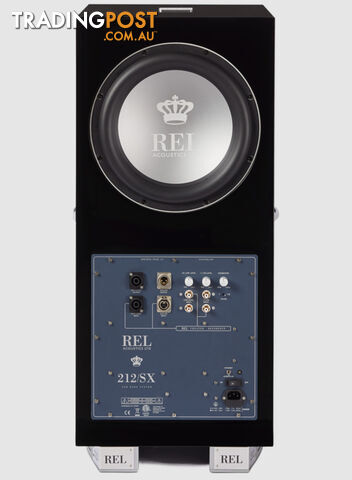

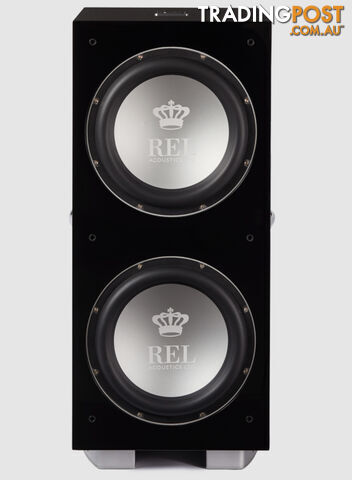

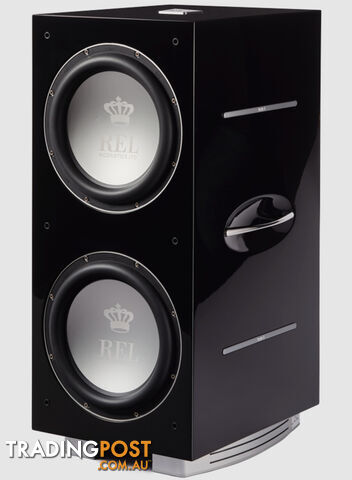

REL 212SX Subwoofer

Introducing the  212/SX Subwoofer

The Powerful 212/SX....QUALITY MEETS QUANTITY

At REL, quality is prioritised in every aspect of their work. Therefore, the 212/SX not only rumbles and shakes foundations, but it also accurately recreates detail and maintains midrange warmth.

Plays brilliantly with both high end 2-channel and large power theatre applications.

Double Down
TWIN CONTINUOUS CAST™ ALLOY BASS ENGINES

Lightweight carbon fibre blades firmly attached to the rear of each active alloy cone serves to both strengthen the cone and quiet it. The twin 12” (350mm) active drivers now offer an additional 12mm of stroke and also benefit from updated suspension geometry and greater power handling. A brand-new double-spider, high powered passive unit on the bottom delivers floor rippling low bass.

The REL 212/SX Subwoofer improves the already-impressive design with amplified volume, effortless performance, and precise detailing of air and soundstage.

Sound Beyond Its Size
DUAL CONTINUOUS CARBON PASSIVE RADIATORS

The uniquely tuned passive radiators use special suspensions, now with an additional 30mm of linear travel, to produce performance far beyond conventional subwoofers. The new SuperProgressive™ passive radiator produces extremely long travel allowing for very loud output while retaining the variable stiffness of its suspension.

The down-firing passive of the REL 212/SX Subwoofer generates a powerful floor-shuddering bass. The rear-mounted passive adds an ambient atmosphere to the sound with its wrap-around bass. The wavefronts produced when the unit is coupled with the rear wall or corner of a room provide a unique single-box feel with effortless quality.

NextGen5 1,000w Digital Amplifier
WHOEVER SAID “POWER CORRUPTS” NEVER HEARD A 212/SX

With incredible reliability in units now numbering in the thousands, the Gen 5 amplifier is a paragon of extreme power and reliability. At 1,000 watts of output, plus the ability to connect both High Level and .1/LFE simultaneously with optional state of the art wireless, 212/SX delivers the goods at scale. It does so with incredible grip and control in the extreme deep bass where most amplifiers get loose and lose control.

212/SX has an almost limitless sense of power, coupled with precision. Where others offer brute strength, we deliver massive power and every secondary category of performance with ease and effortless versatility. Deafening output in a concert video or blockbuster movie? Check.

Beautifully rendered female vocals accurately placed within a stone abbey? Check.

REL seized the opportunity to develop a new high resolution, audiophile-grade uncompressed wireless system for 212/SX and their newer offerings in the Reference range. Airship™ is a new 5.8 gHz military-based wireless system built into a monolithic LSI chip that delivers incredibly fast bass.

REL ship full bandwidth, not just bass, through this system that includes (2) channels. The first channel handles High Level Input and can be used for both stereo bass or use of a single channel with monoblock amplifiers. Simultaneously, Airship will process the .1/LFE channel necessary for special effects in film so both RCA and XLR inputs are provided.

REL anticipate adoption of more active wireless loudspeakers reaching the market, sand as such have included stereo low level inputs. With Airship, you’re ready for the future.

TECHNICAL SPECIFICATIONS

TYPE
(2) Front-firing active drivers
(1) rear passive
(1) down-firing passive

ACTIVE DRIVER SIZE & MATERIAL
(2) 12 in., 300mm long-throw
Continuous CastAlloy™ cone structure
cast chassis

PASSIVE RADIATOR SIZE & MATERIAL
(2) 12 in., 300mm Carbon/Carbon flat cone structure
steel chassis

LOW FREQUENCY EXTENSION
-6dB at 18 Hz

INPUT CONNECTORS
High Level Neutrik Speakon
Low Level stereo RCA
LFE XLR and LFE RCA

OUTPUT CONNECTORS
High Level Neutrik Speakon
LFE RCA, LFE XLR

POWER OUTPUT
1,000 watts (RMS)

AMPLIFIER TYPE
NextGen5 Class D

WIRELESS CAPABILITY
Yes- REL AirShip system
. Sold separately.

Protection System

FULLY ELECTRONIC SET SAFE
Yes

D.C. FAULT
Yes

OUTPUT SHORT
Yes

MAINS INPUT VOLTAGE
220-240 volts, 1120-120 volts for certain markets

FUSES
7 Amp semi delay 220 volts operation
15 Amp semi delay 120 volts operation

Dimensions (W x H x D)
14 1/4in., x 33in., x 20 1/4 in., (362 x 838 x 514.5mm)

NET WEIGHT
128 lbs. (58 kg)

FINISH
Piano Black Lacquer

WARRANTY
3 Year Warranty & Lifetime Warranty on Manufacturers Defects

Included Accessories
Mains Lead
Neutrik Speakon - 10 Metres Nominal
Users Manual



*This information has been obtained from Manufacturers website. We advise that Features, Specifications & Price are subject change from Manufacturer without notice.

E&OE
