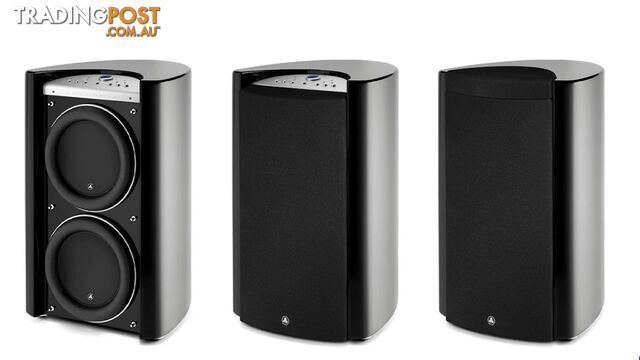

JL Audio Gotham Dual G213v2 Subwoofer

Introducing the Gotham Dual G213v2

Earth Shattering sound from Dual 13.5-inch Subs, 4500 watts

Your first look will tell you that you are looking at something special... your first listen will confirm it beyond a shadow of a doubt.

The beauty of the Gotham® v2 extends well beyond its exotic design and exceptional craftsmanship, aiming right at the emotional core of musical and cinematic enjoyment. This is a subwoofer system with limits that exceed the needs o

f the typical home theatre application, delivering a weight and integrity of reproduction that can only come from a system that is always in control. Its allure lies as much in its ability to convey subtleties as in its prodigious output capabilities. It is simply devastating.

A luxurious, handcrafted gloss-black finish is complemented by machined aluminium and stainless steel accents for a look and feel that fits perfectly with the finest home furnishings.

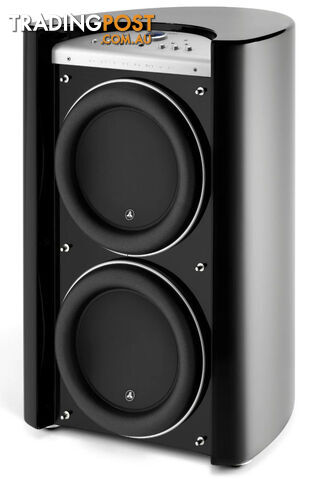

More importantly, the beautiful cabinet houses a pair of JL Audio's highest-technology Subwoofers. When demanded by program material, the Gotham's prodigious switching amplifier can deliver 4500 watts of RMS power, to take full advantage of the twin drivers' four inches of peak-to-peak excursion capability. This ensures that the Gotham can breeze through material that makes other subwoofers go into clipping, limiting or distress.

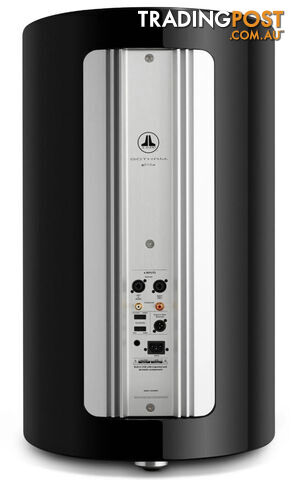

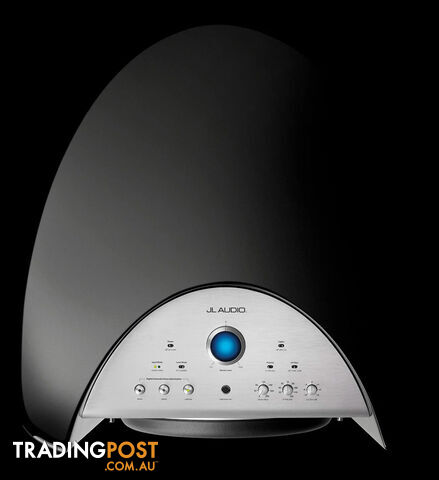

A very complete set of signal processing features is easily accessible on the top surface of the Gotham. These include a highly flexible low-pass filter, variable phase, switchable polarity, e.l.f. trim and our powerful Digital Automatic Room Optimisation (D.A.R.O.) system. A calibrated microphone is included for the D.A.R.O. system. Input connections are made via unbalanced RCA connections or balanced Neutrik® combo XLR/TRS jacks. Also included is an XLR output to connect a second Gotham® v2 as a slave unit.

Listening to a Gotham® v2 reveals an entirely new dimension of subwoofer performance... a dimension so satisfying that listening to lesser subwoofers will forever become an act of compromise.

Technology

JL Audio’s engineering department is at the forefront of research into fundamental loudspeaker behaviour.

They have developed proprietary electromagnetic and suspension analysis systems and invested heavily in state-of-the-art manufacturing and testing. This has borne subwoofer drivers widely considered as reference standards for linear displacement and dynamic stability.

It has also resulted in numerous U.S. and International Patents issued for technologies that refine and extend the performance envelope of the dynamic driver.

Technical Specifications

Enclosure Type
Sealed, with non parallel walls

Enclosure Finish
Black Gloss

Frequency Response (Anechoic)
19 - 112 Hz (±1.5dB)
–3 dB at 17.5 Hz / 120 Hz
–10 at 14 Hz / 150 Hz

Effective Piston Area (Sd)
214.70 sq in / 0.1386 sq m

Effective Displacement
773 cu in / 12.7 L

Amplifier Power
4500 W RMS short-term

Power Modes
Off, On or Automatic (Signal-Sensing)

Light Modes
Off, On or Dim

Width
21.5 in / 546 mm

Height including feet
34.13 in / 867 mm

Depth
24.0 in / 610 mm



*This information has been obtained from Manufacturers website. We advise that Price, Features & Specifications are subject change from Manufacturer without notice.

E&OE
