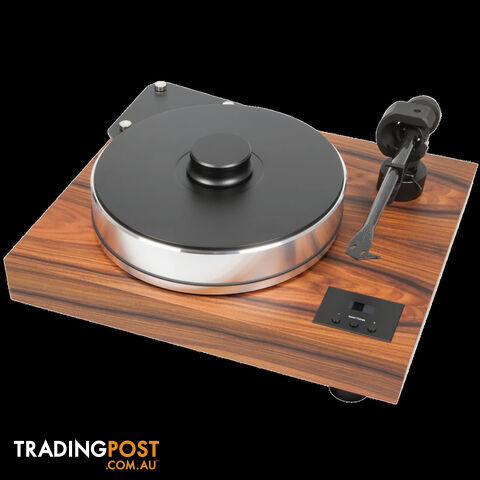

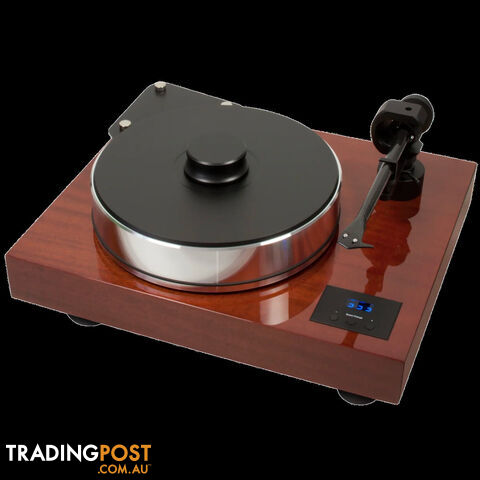

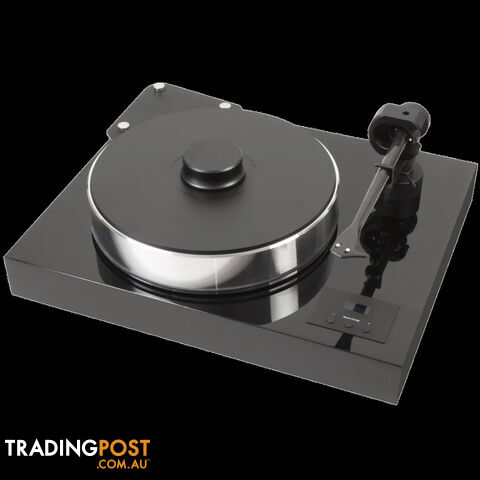

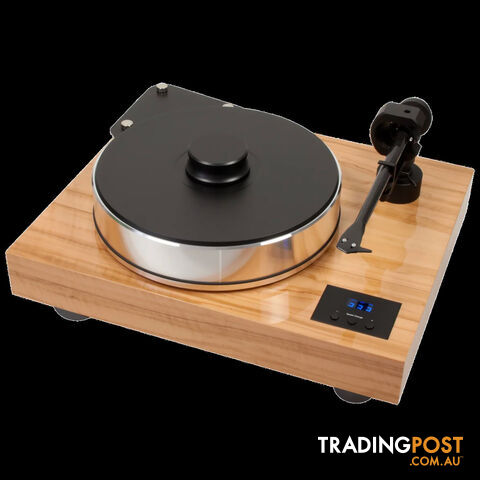

ProJect Xtension 10 Evolution Turntable with Cartridge Options

ProJect Xtension 10 Evolution Turntable

Prefitted with your choice of Cartridge  for Stunning Vinyl Performance

The Xtension 10 Evolution is an ideal turntable for those in search of excellence in sound quality, incorporating all the quality attained from 20 years of experience in turntable design.

The Xtension 10 chassis is made from MDF filled with metal sand, with high mass and ultra-low resonance. Magnetic feet which decouple the main plinth from its base, are combined with a weighty 22kg total turntable mass. The result is a unique combination of 'mass loaded' and 'floating turntable' design principles.

Instead of the old standard adoption of pure metal used for the main platter, ProJect engineers have found a perfect alloy which they then damped on the inner side with Sorbothane®. Cleverly, they then glue recycled vinyl records to the top (which act as a perfect mat) and bake this 'sandwich' before precision balancing it.

The final product subsequently benefits from a wonderfully resonance-free, heavy platter, that runs ultra-silently on an inverted ceramic ball bearing with magnetic suspension.

The ProJect 10cc Evolution with its tonearm base also benefits from 'high-mass' technologies, and is isolated from the main board by a sheet of Sorbothane®. To use this tonearm with a wide range of top quality phono cartridges, from 4 to 14g. it comes with a set of 4 different Sorbothane®- damped counterweights. Xtension 10 Evolution comes with a beautiful dustcover with adjustable hinges, as well as in high gloss lacquer finishes.

Product Features
Super-heavy 22 kg belt drive turntable
Mass loaded magnetic floating sub chassis
Precision balanced sandwich-platter
Inverted ceramic ball bearing with magnetic support
Heavy weight record clamp
Extremely low level of natural resonance
Perfect decoupling through magnetic feet
Electronic speed control 33/45/78 Upm
Tonearm 10cc Evolution made from carbon fibre
Inverted tonearm bearings (ABEC 7 quality)
Dust Cover included
Technical Specifications

Speed
33-1/3 RPM
45 RPM
78 RPM
*Electronic Speed Change

Drive principle
Belt drive

Platter
10.3 kg/300 mm aluminium (TPE damped)

Main Bearing
Inverted stainless steel with ceramic ball with antimagnetic support

Speed Variance

±0.09% (max)

Wow and flutter

±0.1% (max)

Signal to Noise
73 Db

Tonearm
10” cc EVO, Carbon

Effective arm length
254 mm

Effective arm mass
8.5

Tracking force range
10-30 mN
In the Box

ProJect Xtension 10 Evolution Turntable
Dust Cover
Power Supply





*This information has been obtained from Manufacturers website. We advise that Features & Specifications are subject change from Manufacturer without notice.

E&OE
