Audio Technica AT-VMN40ML MicroLine® Replacement Stylus

AT-VMN40ML MicroLine®

Replacement Stylus from Audio Technica

2.2 x 0.12 – MicroLine® Replacement Stylus for the following cartridges:

VM540ML
VM740ML
Product Features

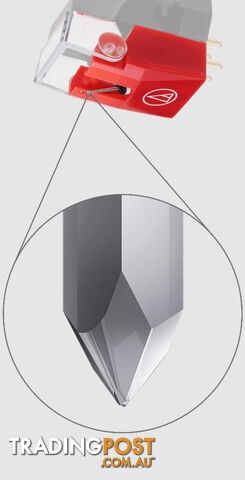

MicroLine™ profile diamond stylus
VM type dual magnet system
Para-toroidal coils improve generating efficiency
Aluminium tapered cantilever
Centre shield plate between stereo channels
Durable low resonance polymer housing
Technical Specifications

Type
VM Type

Mounting
½” centres

Frequency Response
20 to 27,000 Hz

Channel Separation
28 dB (1 kHz)

Output Channel Balance
1 dB (1 kHz)

Output Voltage
4 mV (at 1 kHz, 5 cm/sec)

Vertical Tracking Angle
23 degrees

Vertical Tracking Force
1.8 to 2.2g (2.0g standard)

Stylus Construction
Nude Square Shank

Stylus Shape
MicroLine®

Stylus Size
0.12 x 2.2 mil

Cantilever
Aluminium Tapered Pipe

Static Compliance
40 x 10^ (–6cm) / dyne

Dynamic Compliance
10 x 10^ (–6 cm) / dyne (100 Hz)

Recommended Load Impedance
47,000 Ω

Recommended Load Capacitance
100 - 200pF

Coil Impedance
2,700 Ω (1kHz)

Cartridge Weight
6.4 g

Dimensions
17.3 (H) x 17 (W) x 28.2 (L) mm

Mounting
1/2" Centres

Warranty
1 year limited warranty

Included Accessories
Cartridge installation screws 5mm ×2 and 10mm ×2
Washer ×2, Hexagon nut ×2
Non-magnetic screwdriver ×1
Brush ×1
Lead wire set ×1
*Information obtained from Manufacturers Website
