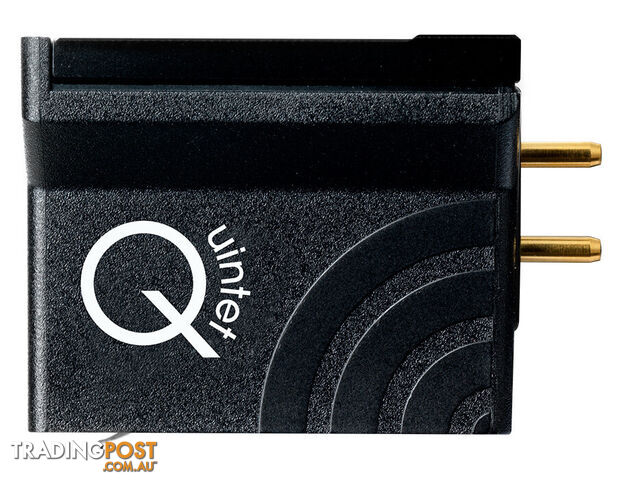

Ortofon Quintet Black S Moving Coil Cartridge

Ortofon Quintet Black Phono Cartridge

The Quintet Black is the best example of Quintet’s overall excellence.

The Quintet Black is graced with a Nude Shibata diamond, considered one of the best stylus profiles available, mounted on a high-performance Boron cantilever.

The Shibata’s slim, highly polished profile allows an exceedingly wide contact area to the walls of the groove and ensures detailed and pure reproduction throughout the spectrum, including even the most high frequency groove information.

The Quintet Black will be unfettered by musical genre and will give the closest approach within the Quintet series to Ortofon’s true accuracy in sound.

Features and Specifications
Output voltage at 1000 Hz, 5cm/sec. - 0.3 mV
Channel balance at 1 kHz -
Channel separation at 1 kHz - > 23 dB
Channel separation at 15 kHz - > 15 dB
Frequency range at - 3dB - 20 - 25.000 Hz
Frequency response 20-20.000 Hz - +/- 1.5 dB
Tracking ability at 315Hz at recommended tracking force *) - 80 µm
Compliance, dynamic, lateral - 15 µm/mN
Stylus type - Nude Shibata on Sapphire cantilever
Stylus tip radius - r/R 6/50 µm
Tracking force range - 2.1-2.5 g (21-25 mN)
Tracking force, recommended - 2.3 g (23 mN)
*) Typical value
Tracking angle - 20°
Internal impedance, DC resistance - 5 Ohm
Recommended load impedance - > 20 Ohm
Cartridge body material - ABS/Aluminium
Coil wire material - Aucurum
Cartridge colour - Black
Cartridge weight - 9 g



*This information has been obtained from Manufacturers website. We advise that Features, Specifications & Price are subject change without notice.
