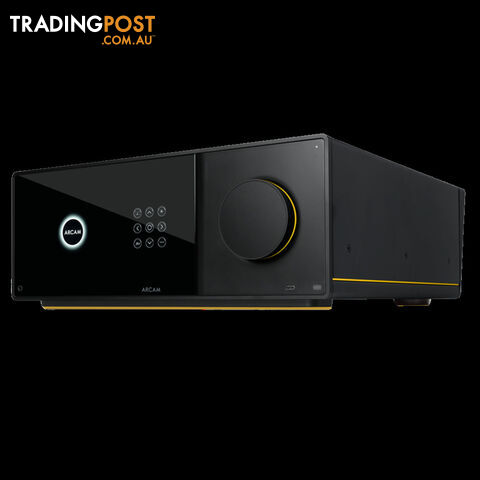

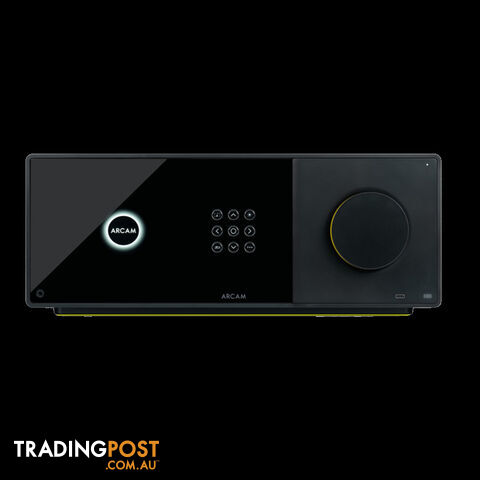

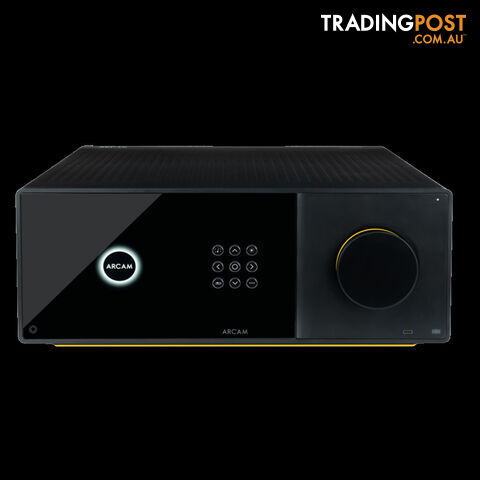

Arcam AVP45 AV Processor

Introducing the AVP45 AV Processor - it's coming soon, pre order now
The Heart of the Ultimate Home Theatre

For those of us who are obsessed by the biggest and best in home cinema, the AVP45 is the definitive hub for uncompromised performance. This is not just an AV processorits the command centre for the most dynamic and flexible home theatre systems imaginable.

Engineered in Cambridge, UK, the AVP45 delivers 16 channels of immersive audio decoding and processing, powered by the same high-performance DAC architecture found in ARCAMs flagship stereo hi-fi systems. Every detail, every nuance, every cinematic moment is reproduced with breathtaking clarity and precision.

The AVP45 includes balanced audio outputs for all channels, ensuring pristine signal integrity when paired with external amplification. Combine it with the ARCAM PA9 Class G power amplifier for a system that sets the standard for power, control and of course, musicality.

Flexibility is at the core of the AVP45. With Matrix Channel Assignment, you have complete freedom to configure your system exactly as you envisionwhether for movies, gaming, or sport. Dolby Atmos, DTS:X, IMAX Enhanced and AURO-3D processing and Dirac Live room correction guarantee a truly world-class experience tailored to your space.

Featuring the same intuitive interface, vibrant 6.5" colour display and Radia App found across the Radia AV Series, control is effortless, because at Arcam, they believe that the experience should be as seamless as the sound.
Product Features
16-channel Hi-res Audio Processor for a wide selection of immersive speaker configurations, all with exceptional sound quality.
Dolby Atmos - Bring even the smallest details to life with sound that moves in all directions.
DTS:X and IMAX Enhanced, place sound where it would occur naturally in space, creating the most lifelike, multi-dimensional audio experience ever.
AURO-3D A revolutionary way of delivering audio that wraps you in a cocoon of life-like sound.
Matrix Channel Assignment for the flexibility to assign up to 16-channels for the best performance of your system
Dirac Live Room Correction for exceptional, calibrated audio in any room - upgrade with Dirac Live Bass Control and Dirac Live Active Room Treatment
Back-lit, Bluetooth remote control for continuous out-of-sight control
Works with the new ARCAM Radia app for setup, control, Internet Radio, Podcasts and UPnP playback from iOS, Android and Windows devices and PCs.
Supports Apple Airplay, Google Cast, Spotify Connect, Tidal Connect and Qobuz Connect Works with Apple and Android devices, with direct connection from lossless music services
Bluetooth with Snapdragon Sound and Auracast for the best wireless sound with the most convenience
Large High-resolution display for clearly visible status and metadata from the comfort of your main listening position
Plastic free packaging for easy disposal of natural materials
Technical Specifications

DECODING / ENCODING

Maximum Channel Count
16

Reassignable Channels
All channels (Subwoofers into CH4 & 11-16 only)

Supported Decoding and Encoding
Dolby Atmos, Dolby TrueHD, Dolby Atmos Height Virtualisation, Dolby Surround
DTS:X, DTS HD Master, DTS Neural:X, DTS Virtual:X
MPEG H
IMAX Enhanced
AURO-3D, AURO-2D

HDMI

Inputs/Outputs
7/3  (Zone 1 outputs = 2, Zone 2 outputs = 1)

HDMI/HDCP Versions
2.1a/2.3

Resolution support (resolution/framerate)
Up to 8K/60Hz or 4K/120Hz

Supported Dynamic Range Profiles
HDR, HDR10, HDR10+, HDR10+ Gaming, Dolby Vision, HLG

Supported HDMI features
Variable Refresh Rate (VRR), Auto Low Latency Mode (ALLM), CEC, eARC/ARC (Output 1) On Screen Display

STREAMING

Works with (apps)
ARCAM Radia Control, Spotify Connect, Tidal Connect, Qobuz Connect, Roon (Ready)

Works with (services)
Apple Airplay, Google Cast ARCAM Radia supported services, Internet Radio, Podcasts, UPnP

Supported Hi-res media
FLAC, WAV (LPCM), MQA, AAC, ALAC, AIFF, MP3, OGG, WMA
Gapless Playback Supported

Supported Hi-res Bit depth
16, 24

Supported samples rates (kHz)
Up to 192 kHz

Frequency response
20Hz20kHz ± 0.05dB

DIGITAL INPUTS

Number of inputs (Coaxial/Toslink)
2/2

Supported Sample Rates (kHz)

Coaxial (RCA)
192, 176.4, 96, 88.2, 48, 44.1

Optical (Toslink)
96, 88.2, 48, 44.1

Bit depths (bit) (Coaxial/Toslink)
24, 16

Frequency response
20Hz20kHz ± 0.2dB

Signal/noise ratio (A-wtd, ref. 50W, 0dBFS)
100dB

ANALOGUE INPUTS

Number of inputs
3 (RCA pairs)

Signal/noise ratio (A-wtd, ref. 50W, 1V input)
100dB

Frequency response
20Hz20kHz ± 0.2dB

PREAMPLIFIER OUTPUTS

Number of Outputs RCA/XLR
16/16

Balanced (XLR) peak output level per channel
5V RMS

Single-ended (RCA) peak output level per channel
2V RMS

THD+N (20 Hz to 20 kHz)
100dB

GENERAL

Mains voltage (V/Hz)
100120V or 220240V, 5060Hz

Max Power consumption
500W

Max Thermal dissipation
170 BTU/hour

Idle Power consumption
35W

Idle Thermal dissipation
120 BTU/hour

Standby Power consumption (Default/Low Power
2W/0.4W

Dimensions W x D (including speaker terminals) x H (including feet)
432 x 399 x 170 mm

Weight (net)
9.4g

Weight (packed)
15kg

WIRELESS SPECIFICATIONS

Bluetooth Version
5.4

Bluetooth Profiles
A2DP Sink/Source, AVRCP, Snapdragon Sound, AAC, LE Audio, Auracast, GATT, VCP, MCP, BAP, CAP

Bluetooth Transmitter Frequency Range and Power
2,402 MHz to 2,480 MHz

Wi-Fi Network
IEEE 802.11 a/b/g/n/ac (2.4GHz/5GHz)

2.4G Wi-Fi Transmitter Frequency Range and Power
2.400 GHz to 2.4835 GHz

5G Wi-Fi Transmitter Frequency Range and Power
5.15-5.35GHz, 5.47-5.725GHz, 5.725-5.875GHz,

Supplied accessories

Region Specific Power Cord(s)
Rear panel cowl
Remote control with 2 x AAA batteries
Measurement Microphone
5m USB Cable
Quick Start Guide
Important Safety Instructions
