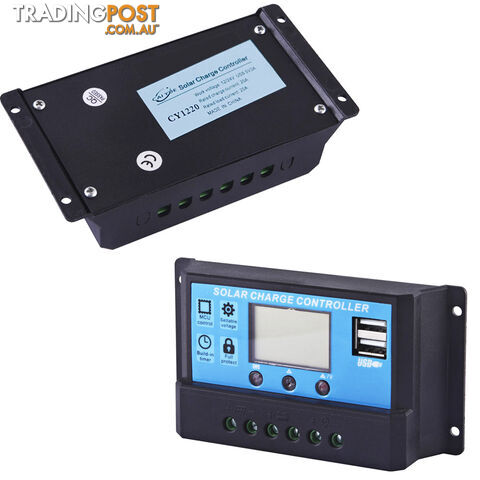

20A 12V-24V LCD Display PWM Solar Panel Regulator Charge Controller & Timer PWN

Solar controller has specifically designed to meet the needs of the rural electrification market. The low cost resulted from using the latest electronic technology and high volume manufacturing. We are reputable trader of solar charge controllers,power inverters,and solar power systems. All our products are designed for high quality and high reliability. The controller has a low failure rate and will last a long time. The solar controllers are built-in electronic fused that do not require replacements. The solar controlers electronics are protected with moisture-tight coating, minimizing damage from humidity and from nesting insects. Solar controller is fully automatic and requires no adjustments or user selections.
Features
LCD display
PWM battery charging
All necessary protections equipped
Adjustable controlling parameter of the system
With double USB ports charge
Automatically recognizing day/night
Temperature compensation
Dual mosfet reverse current protection, low heat production
The Regulator is only suitable for lead acid batteries:OPEN,AGM,GEL
It is not suited for nickel metal hydride, lithium ions or other batteries
Free 2x Anderson Style Plugs
148.5*78*35mm Size: 150g Weight: 12.6V(default,adjustable) Discharge reconnect: 10.7V(default,adjustable) Discharge stop: 13V(default,adjustable) Float Charge: 10mA Self consume: Home, Industrial, Commercial Application: -35C to 60C Working Temperature: 20A Discharge Current: 20A Charge Current: 12V/24V auto Batt Voltage: CY1220 Model NO.:
Specifications
1 Year Warranty
Warranty
1 x Solar Charge Controller
1 x User Manual
2 x Anderson Style Plug
4 x Terminals
Package Contents
