M & K Sound X12 Subwoofer

Introducing Mill & Kreisel's Iconic X12 Subwoofer

The Dual Powered THX Sub

M&K Sound X12 THX Ultra II Dual 12-Inch Subwoofer with dual 12-Inch (305 mm) drive units, the X12 provides 226 sq. in of cone area to move and control air or 40% more surface area than the X10 and 126% more surface area than the X8, equivalent to a single 18-Inch driver.

MK Sound X12 THX Ultra II Dual 305 mm Subwoofer have been tailored specifically to fulfil M&K Sounds ambitious performance requirements.

They employ open baskets for free air circulation, resulting in minimal mechanical distortion by eliminating any captive compressed air mass behind the cone. Cast baskets also offer a very rigid connection to the cabinet and improved heat dissipation from the motor system for reduced power compression.

The Distortion Killers

The M&K Sound X Series implements aluminium AC shorting rings in the magnet system and aluminium pole spacers above the pole piece. These devices make a significant contribution to the X Series subwoofers ability to render extraordinary fine dynamic bass detail with high precision at all levels as the drivers maintain full control and respond instantaneously to the incoming signal, for unparalleled accuracy and authority in the bottom octaves.

Key Features
Left/Right  Line Level RCA input
Left/Right XLR Balanced input
Push-Pull Dual Driver
Total Harmonic Distortion
Optional THX or MK EQ mode
Technical Specifications

Amplifier Power
400 Watts RMS / 700 Watts Peak

Frequency Response
20 200 Hz +/- 2 dB

Total Harmonic Distortion
0.5%, 400 Watts, 4 Ohm

AC Power Consumption
0.5W standby, 60W average, 500W max.
AC Line Voltage
100-230 VAC 50/60 Hz 5A

LFE Input
L/R Line level RCA & L/R XLR balanced

LFE Passthrough Output
L/R Line level RCA & L/R XLR balanced

Switchable Lowpass Filters
Fixed 80 Hz / Variable / No lowpass

Phase
0-180 degrees, continuously variable

Volume control
Continuously variable / Fixed THX

Switchable LFE
Optional THX or MK EQ mode

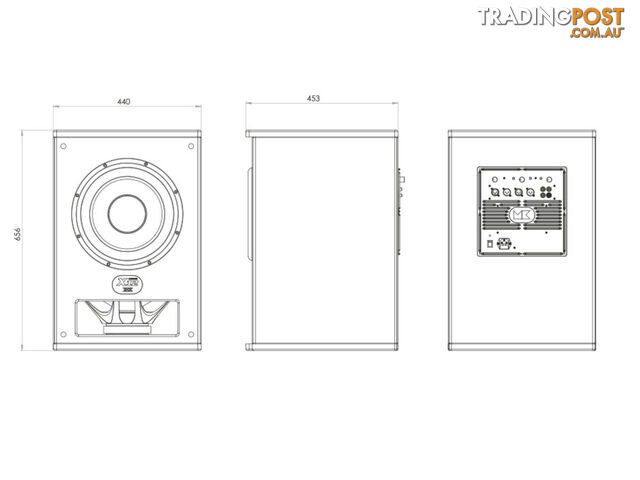

Dimensions (H x W x D)
656 x 440 x 453 mm

Weight
36 kg
*This information has been obtained from Manufacturers website. We advise that Price, Features & Specifications are subject change from Manufacturer without notice.

E&OE
