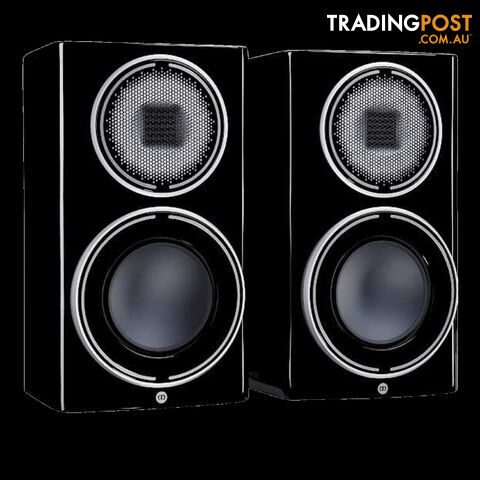

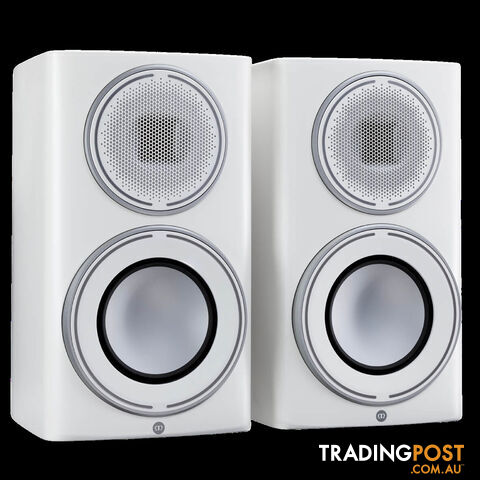

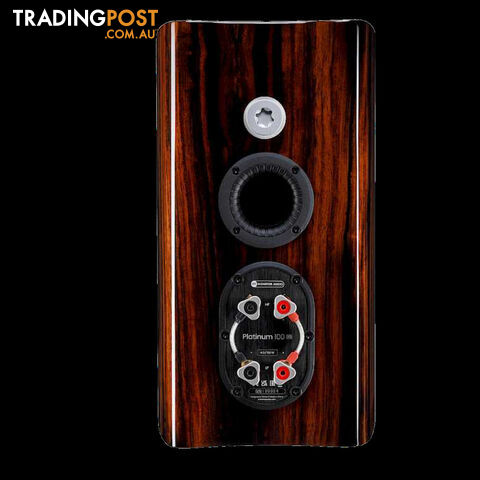

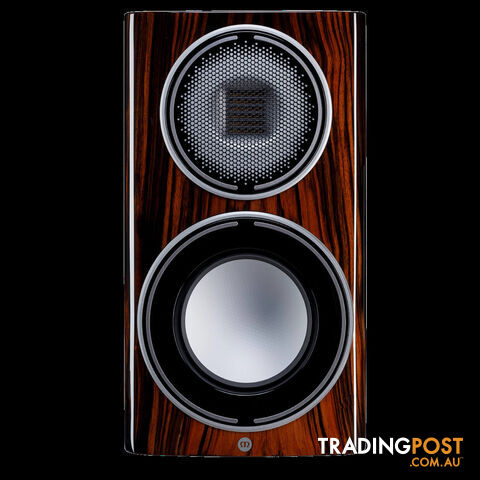

Monitor Audio Platinum 100 3G Bookshelf Speakers

Introducing the Platinum 100 3G



The Epitome of Presicion Engineering and Design Elegance

The Platinum 100 3G is engineered to deliver a truly exceptional listening experience from a relatively diminutive loudspeaker. With its new RDT III mid-bass driver cone and MPD III transducer, the Platinum 100 3G has been significantly improved over the previous generation, and sound is presented with a purity and precision that makes for an astoundingly engaging experience.

The Platinum 100 3G also includes mount points for the Platinum 2G Stand and the forthcoming universal stand, which will be available soon.

Product Features
1 x MPD III high-frequency transducer for a larger, clearer, and more lifelike sound
1 x 6” RDT III mid-bass driver for incredible levels of clarity and scale
A truly exceptional listening experience from a relatively small loudspeaker
Rear-ported and tuned for ease of positioning without affecting sound performance
Perfect for smaller high-performance music set-ups, or as front/rear channels in home cinema systems
Mount points for the Platinum 2G Stand
Cabinets are embellished with etched inlays to highlight the craftsmanship
About the Platinum 3G Range - the Definition of Elegance

Platinum Series has always represented Monitor Audio’s engineering and design prowess and the 3rd generation is no exception. The UK-based design team worked closely with acoustic engineers to deliver an aesthetic that celebrates the high-performance components without overpowering its surroundings.

The cabinet design on Platinum Series 3G is all new. Beautifully detailed and expertly crafted, our industry-leading attention to detail and passion for quality ensures that each cabinet is elegant and refined on the eyes, while being engineered for total acoustic performance.

Constructed using laminated layers of MDF to form a curved and braced super rigid 18-21mm cabinet on the rear with a 36mm thick baffle precision machined to create a unique curved front profile. The cabinets are then embellished with etched inlays to highlight the craftsmanship, before 16 layers of lacquer are added on top to create a beautiful, luxury piano gloss finish. A pure satin matte finish is applied to models finished in white - a contemporary statement in any interior.

A technical legacy with 'Concept 50' technology

Platinum Series 3G builds on two generations of loudspeaker design, which has consistently evolved at each step. We have introduced a ground-up new MPD III transducer, developed for the ‘Concept 50’ speaker, which improves on every aspect, as well as improvements to the mid and bass driver cones called RDT III - a further significant development in driver technology.

Pinpoint accuracy for lifelike sound

New MPD III high frequency transducer. The improvements help to reduce distortion and flatten the frequency response leading to a clear and consistent sound across all your music.

Precision perfect

The Rigid Diaphragm Technology III (RDT III) cone has three new optimisations over its predecessor. Firstly, a new rear layer featuring two uniform layers of carbon fibre skin helps reduce cone breakup, as does an optimised rubber surround. Finally, an optimised cone edge treatment extends the passband of the drivers. When combined, these innovations significantly increase the useable bandwidth, enabling improvements to the crossover and final response of the speaker. The result: Platinum 3G mid and bass drivers boast the lowest distortion of any Monitor Audio speaker in its history.

Clever design is more than skin deep

Platinum series has always represented Monitor Audio’s engineering and design prowess and the 3rd generation is no exception. Monitor Audio's UK based design team have worked closely with the acoustic team to deliver an aesthetic which celebrates the performance components without overpowering its surroundings.

Aluminium Driver Frames

The drivers on the Platinum Series 3G are held in place with individually cast aluminium frames, creating two layers of isolation between the driver chassis and the cabinet.

Technical Specifications

System Format
2-Way

Sensitivity (2.83 V @ 1 m)
85 dB (free-field)

Continuous Power Handling (RMS into 4 Ohms, Pink Noise with 6dB Crest Factor)
150 W

Port Tuning Frequency
44 Hz

Frequency Response (-6 dB)
37 – 60 kHz (Free Field)
28 – 60 kHz (in room)

Nominal Impedance
4 Ohms

Minimum Impedance (20 Hz to 20 kHz)
4.0 Ohms @ 180 Hz

Recommended Amplifier Power (RMS into 4 Ohm, Music Signal)
75 - 830 W

Crossover Frequency
LF/MF: 2.85 Hz

Bass Alignment

Ported

Drive Unit Complement
1 x 6" RDT III bass driver
1 x MPD III Tweeter

External Dimensions
398 x 225 x 325.6 mm

Finishes
Piano Black
Piano Ebony
Pure Satin White

Sold As
A Pair



*This information has been obtained from the manufacturer's website. We advise that features & specifications are subject to change without notice.

E&OE
