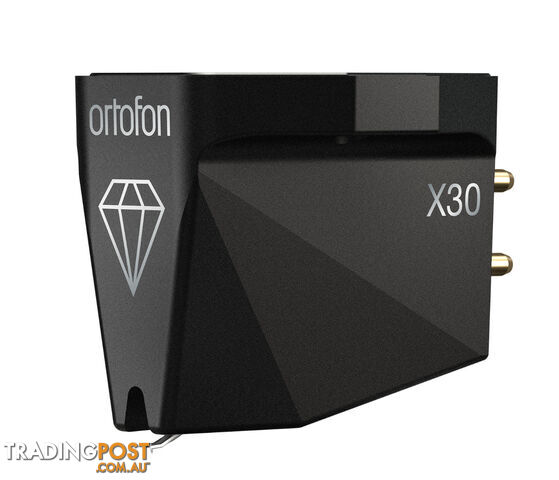

Ortofon Hi-Fi MC X30 Moving Coil Cartridge

Performance beyond price and Winner What the Hi-Fi? Best Cartridge for its Price Awards 2025

We'd like you to meet the new Hi-Fi MC X30 MC Cartridge

Experience the depth. Hear every detail.

The MC X Series combines advanced engineering and the finest materials to deliver a sound experience of remarkable clarity, depth, and precision. Designed for those who demand nothing less than excellence, it sets a new standard in high-end vinyl performance.

A New Benchmark in Analog Perfection

In the world of vinyl playback, the cartridge is where the journey begins. A pivotal point where music rises from the groove and transforms into immersive soundscapes. With the MC X Series, Ortofon sets a new benchmark in MC cartridge design, pushing premium Moving Coil technology to unprecedented levels of performance.

Ortofon Technology

The MC X Series combines high-end materials with innovative engineering. Each cartridge features a Pure Silver Coil System, using high-purity silver wire for exceptional signal clarity and detail.

Paired with a newly developed Optimised Magnet System - featuring a one-piece pole cylinder and rear magnet yoke - this design ensures maximum magnetic efficiency and a clean, powerful signal path for elevated performance.

Precision starts at the core

At the core of the MC X Series is an advanced honeycomb-structured stainless-steel frame, created using Metal Injection Molding (MIM) technology. This refined construction ensures superior mechanical stability, providing an ideal foundation for precise and accurate sound reproduction.

MC X30

Push your listening experience further with the MC X30. Featuring a nude fine line diamond stylus, it offers extraordinary accuracy and resolution, rendering your music and every track with breathtaking detail and dynamic range.

Technical Specifications

Channel balance at 1 kHz
0.5 dB

Output voltage at 1 kHz, 5cm/sec
0.4 mV

Channel separation at 1 kHz
26 dB

Frequency response 20 Hz - 20 kHz
+/-1 dB

Compliance, dynamic, lateral
13 μm/mN

Cantilever material
Aluminium

Stylus type
Nude Fine-Line

Stylus tip radius
r/R 8/18 μm

Stylus suspensions
Ortofon exclusive

Coil system
Quad coils

Tracking force, recommended
2.0 grams

Internal impedance, DC resistance
6 Ω

Coil wire material
High-purity silver

Cartridge weight
8.6 grams

Recommended load resistance
> 50 Ω



*This information has been obtained from Manufacturers website. We advise that Price, Features and Specifications are subject change without notice.

E&OE
