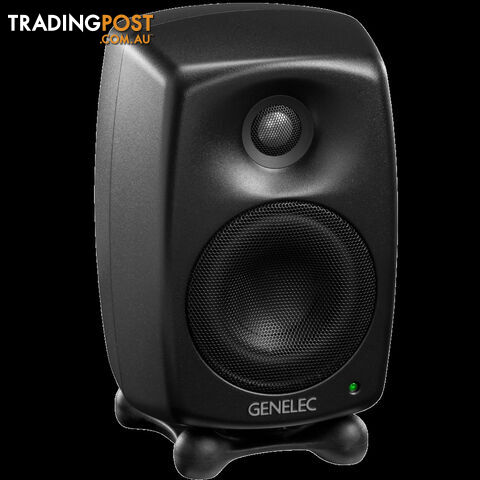

Genelec 8020D 4" Active Studio Monitor Pair

Meet the 8020D 4" Two-Way Studio Monitor Pair

Small Footprint, Uncomparable Sound.

When it comes to performance versus size, the 8020 has set the benchmark in nearfield monitoring for over 15 years. With workspace often at a premium, why should you have to compromise on quality? With the 8020D, Genelec’s renowned accuracy and reliability will fit your project and your space.

The Genelec 8020D is small in footprint, but big in ambition. The 8020D, introduced in 2017, even delivers 4 dB higher SPL and has a lower energy consumption than earlier models of 8020. Designed to suit the broadest possible range of listening environments, 8020D thrives when space is at a premium, and draws on the innovation of the 8000 Series for an unrivalled near-field experience.

Trust in the colour-free, accurate reproduction of the Minimum Diffraction Enclosure (MDE™), while relying on the precise on- and off-axis frequency reproduction of the Directivity Control Waveguide (DCW™). And when you’re finished, Genelec Intelligent Signal Sensing (ISS™) circuitry detects when your system is no longer in use, placing it into an environmentally friendly, power-saving standby mode. From post-production studios to OB vans and DAW-based rooms, the 8020D is your near-field solution of choice.

Classic design

The 8020D is the latest revision of this enduring studio classic, boasting an even higher SPL yet lower energy consumption than previous versions. Designed to adapt to the broadest possible range of listening environments, the 8020D thrives when space is at a premium.

Transparent and truthful

Engineers love the transparent and truthful reproduction of the 8020D, and with its wide uncoloured sweet spot you are always in a position to make accurate, reliable mix decisions. Additionally, our Intelligent Signal Sensing (ISS™) circuitry detects when your monitor is no longer in use, placing it into an environmentally friendly, power-saving standby mode

Key Features
Directivity Control Waveguide (DCW™) Technology
Minimum Diffraction Enclosure (MDE™) Technology
Reflex Port Design
Room Response Compensation
Optimised Amplifiers
Active Crossovers
Protection Circuitry
Intelligent Signal Sensing (ISS™) Technology
Iso-Pod™ Stand
Versatile Mountings
Technical Specifications

Frequency Response
62 Hz - 20 kHz (± 2.5 dB)

Low cutoff -6dB
56 Hz

High cutoff -6dB
25 kHz

SPL

Peak SPL
≥107 dB
Maximum peak acoustic output per pair on top of console, at 1 m distance with music material

Short term max SPL
≥100 dB
Max. short term sine wave acoustic output on axis in half space, averaged from 100 Hz to 3 kHz, at 1m distance.

Long term max SPL
≥93 dB
Maximum long term RMS acoustic output in same conditions with IEC weighted noise (limited by driver unit protection circuit) @ 1m.

Self-generated noise
≤5 dB SPL
Self generated noise level in free field at 1m on axis (A-weighted)

Enclosure

Enclosure material
Die cast aluminium

Enclosure type
Reflex port

Drivers

BASS

Driver type
Cone

Diameter
105 mm (4 18 in)

TREBLE
Driver type
Metal dome

Diameter
19 mm (3/4 in)

Harmonic distortion
70…400 Hz ≤3 %
> 400 Hz ≤0.5 %

Amplifiers

8020D bass amplifier
50 W Class D

8020D treble amplifier
50 W Class D

Mains voltage
100-240 VAC 50/60Hz

Power consumption

ISS Active
≤0.5 W

Idle
≤3 W

Full output
60 W

Connectors

Input
XLR female, balanced 10 kOhm.

Crossover

Bass/Treble
3000 Hz

Dimensions
H 230 (with Iso-Pod 242 mm) x W 148 x D 142 mm

Weight
3.2 kg each

Finishes
White
Dark Grey
Raw
Black (Special Order)

Warranty
Includes a 2-year warranty, plus an additional 3-year extended warranty when registered on MyGenelec.

In the Box

2 x 8020D monitor
1 x mains cable 1,8 m
1 x operating manual
1 x IsoPod kit
