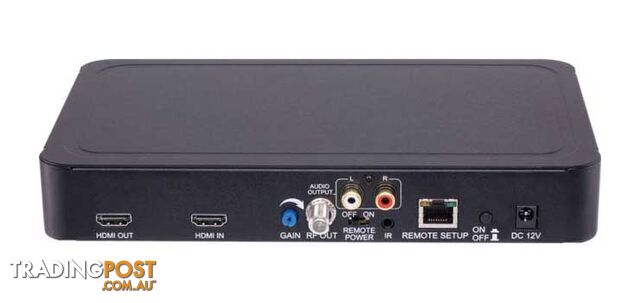

HD1605 1 Ch HDMI Digital DVB-T Loop Through Digital Modulator - DIGI-MOD

FeaturesHD-1605 is a new HD single input MPEG-4 only DVB-T modulator. This HD digital modulator is with delayed audio and IR function as well as manual gain adjustment. It has front LCD display allowing easy configuration and adjustments. HD-1605 is perfect for multi-video distribution solutionsin the commercial and institutional market. H.264 AVCHDMI input, HDMI loop through and RF outputBuilt-in IR controlGain control (20dB manual attenuation)RJ45 port for web managementVideo resolution: Up to 1080pPerfect, clean and clear HD picture on high motion video, sports, test crawls,etcFront panel LCD dispalyCool & silent operationDelayed audio output (RCA)SpecificationsInputVideo Input HDMIVideo Input Level 0.7-1.4V(peak to peak)Video Mode PAL/NTSCAudio Input StereoAudio Input Level 0.4-4.8V(p-to-p)OutputFrequency Range Local Country AvailableOutput Level 85 dBµVMER >36 dB typ.Delayed AudioAnalog Audio Output Audio L/R, Delay adjustable from 0-20000msModulationVideo Resolution 480i, 480p, 576i, 576p, 720p, 1080i, 1080pVideo Compression H.264AVC (MPEG-4)Audio Compression MPEG1 Layer II/ AACLCN YesCarrier (OFDM Mode) 2K/ 8KGuard Intercals 1/32Code Rate(FEC) 7/8Constellations 64-QAMGeneralPower Supply 12 VDC 3 AmpConsumption 1200 mAOperating Temperature 0°C-45°CStorage Temperature -10°C- 60°CLanguage EnglishDimension 236mm x 155mm x 35mmWeight 1000g Brand: DIGI-MOD Visit our website to view thousands more products like this and order online at:
