Q4KR1 SINGLE INPUT HD DIGITAL MODULATOR 4K LOOPOUT HD1603 REPLACEMENT - ZyCast

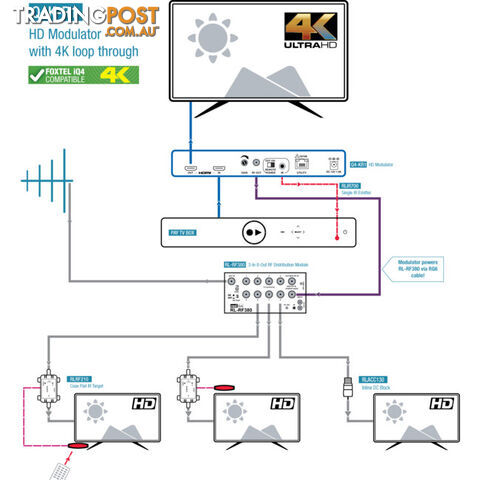

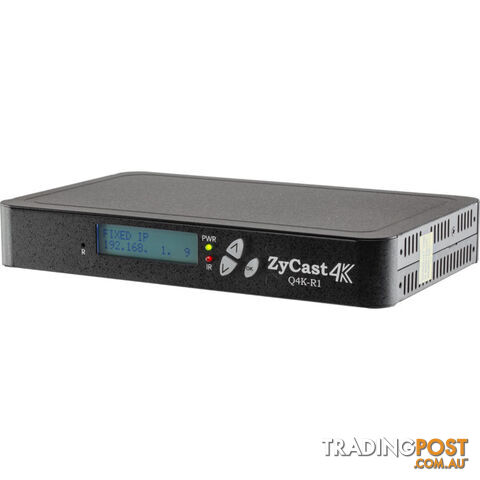

Introducing the replacement for the industry's most popular modulator –the HD1603– Now with 4K loop-out! The Q4KR1 not only will accept a 4K signal but allows you to retain that 4K signal on your main TV while modulating a 1080p signal to the rest of your house! We have been testing the new Q4K-R1 for months now, whilethe Q4K-R1 is not the first 4K modulator on the market, it'sthe first stable 4K modulator. Like the HD1603, the Q4K-R1 supports Resi-linx IR targets and emitters. Resi-linx are the market leader in both IR and modulation and the only brand to have Foxtel approved product in both fields. This unit has full menu via LCD display, improved MER resulting in higher quality picture and is configurable for New Zealand. Q4K-R1 allows you to distribute any HD source around your home/business installation over coax cable and control with ease. Most cost effective fully featured 4K HD modulator on the market Single input digital modulator encoding HD video and stereo audio signals to MPEG-4 only(H.264) DVB-T COFDM TV channels Compatible input resolutions 576i/720P/1080i& 1080P/UHD/4K for high definition picture quality (ensure TV tuner is MPEG4/H.264 and 4K HDCP2.2 compatible) HDMI input-with HDMI loop through for local connectivity IR return path- compatible with resi-linx RL-RF380(video hub) and Rl-RF210(IR target) Superior error rate (MER 39) Full function front LCD display with menu driven configuration New Zealand channel plan selectable 2K/8K carriers Adjustment of settings available via WEB GUI Remote management with a PC Adjustable VHF/UHF output (6-69) 85dB launch with adjustable attenuation Compact design Silent operation-NO FAN NOISE! Video/ Audio Encoding Profile Video Resolution 1080p / 1080i / 720p Video Codecs H.264 Audio Audio Codecs MPEG1 Layer II MPEG4 AAC General Local Monitoring LCD IR Emitter Single Web GUI Supported Firefox, Chrome, Safari Password Protected GUI:User Settable Power Supply 12VDC 1.5A Consumption 6.5 Watts Operation Temperature 0c to +45c Storage Temperature -20c to +70c Dimension 236mm x 145mm x 34mm Weight TBD Language English   Video / Audio Input HDMI 2.0 Connectors Dual (One for Input ; One for Loop-through) Audio Embedded PCM HDCP Compliance 1.4 and 2.2 Resolution 4k / UHD / 1080p / 1080i / 720p Output QAM Standard DVB-T Connector 1x "F" Female Frequency Range 177.5MHz to 816.5MHz (Ch6-Ch69)   Output Level 85 dBµV Typical (With 20dB Range Manually Adjustable) Flatness Across Full ± 2 dB MER 39 dB Typical Carrier (OFDM Mode) 2K / 8K Guard Intervals 1/32 Code Rate (FEC) 7/8 Modulation 64-QAM Output Impedance 75 ohm RF Output Return Loss 10 dB Typical LCN Embedded, Varies by Country Regulations Brand: ZyCast Visit our website to view thousands more products like this and order online at:
